NGS Analysis Basics

Author

Thomas Girke

Published

March 24, 2026

Overview

Sequence Analysis in R and Bioconductor

R Base

Some basic string handling utilities. Wide spectrum of numeric data analysis tools.

Bioconductor

Bioconductor packages provide much more sophisticated string handling utilities for sequence analysis (Lawrence et al. 2013; Huber et al. 2015).

Biostrings: general sequence analysis environment
ShortRead: pipeline for short read data
IRanges: low-level infrastructure for range data
GenomicRanges: high-level infrastructure for range data
GenomicFeatures: managing transcript centric annotations
GenomicAlignments: handling short genomic alignments
Rsamtools: interface to samtools, bcftools and tabix
BSgenome: genome annotation data
biomaRt: interface to BioMart annotations
rtracklayer: Annotation imports, interface to online genome browsers
HelloRanges: Bedtools semantics in Bioc’s Ranges infrastructure

Package Requirements

Several Bioconductor packages are required for this tutorial. To install them, execute the following lines in the R console. Please also make sure that you have a recent R version installed on your system. R versions 4.0.x or higher are recommended.

Please do not run this install on the HPCC unless you want to reinstall some of these packages in your own user account.

if (!requireNamespace("BiocManager", quietly = TRUE))
    install.packages("BiocManager")
BiocManager::install(c("Biostrings", "GenomicRanges", "rtracklayer", "systemPipeR", "seqLogo", "ShortRead"))

Strings in R Base

Basic String Matching and Parsing

String matching

Generate sample sequence data set

myseq <- c("ATGCAGACATAGTG", "ATGAACATAGATCC", "GTACAGATCAC")

String searching with regular expression support

myseq[grep("ATG", myseq)]

[1] "ATGCAGACATAGTG" "ATGAACATAGATCC"

Searches myseq for first match of pattern “AT”

pos1 <- regexpr("AT", myseq)
as.numeric(pos1); attributes(pos1)$match.length # Returns position information of matches

[1] 1 1 7

[1] 2 2 2

Searches myseq for all matches of pattern “AT”

pos2 <- gregexpr("AT", myseq)
as.numeric(pos2[[1]]); attributes(pos2[[1]])$match.length # Returns positions of matches in first sequence

[1] 1 9

[1] 2 2

String substitution with regular expression support

gsub("^ATG", "atg", myseq)

[1] "atgCAGACATAGTG" "atgAACATAGATCC" "GTACAGATCAC"

Positional parsing

nchar(myseq) # Computes length of strings

[1] 14 14 11

substring(myseq[1], c(1,3), c(2,5)) # Positional parsing of several fragments from one string

[1] "AT"  "GCA"

substring(myseq, c(1,4,7), c(2,6,10)) # Positional parsing of many strings

[1] "AT"   "AAC"  "ATCA"

Random Sequence Generation

Random DNA sequences of any length

rand <- sapply(1:100, function(x) paste(sample(c("A","T","G","C"), sample(10:20, 1), replace=TRUE), collapse=""))
rand[1:3]

[1] "AGCTCAGATGCTTAACT"    "ACCGTTCTCTAGTAT"      "GGGTGCCTACGGGACGCAAA"

Count identical sequences

table(c(rand[1:4], rand[1]))


     ACCGTTCTCTAGTAT    AGCTCAGATGCTTAACT         CAAGAGAAAACT GGGTGCCTACGGGACGCAAA
                   1                    2                    1                    1

Extract reads from reference

Note: this requires the Biostrings package.

library(Biostrings)
ref <- DNAString(paste(sample(c("A","T","G","C"), 100000, replace=T), collapse=""))
randstart <- sample(1:(length(ref)-15), 1000)
randreads <- Views(ref, randstart, width=15)
rand_set <- DNAStringSet(randreads)
unlist(rand_set)

15000-letter DNAString object
seq: CTTGGTTGCAAGAAAAGTGCGGAAGGTAGTAGTCGTTCTTGGTTCTACATGGGCTATATAGGTCGGGTCCTGTGCTTAAAATACTATCTAATCCACGTATACTCAC...TCCTGTTAGTCCTGCCCAGTGGATTCTTTTGGTAAACTCTAGTTGACACACGGGTCAGGAGATCGGAACAACACGCCGATACTCGACGTGATGCAGGTTAACTATG

Sequences in Bioconductor

Important Data Objects of Biostrings

`XString` for single sequence

DNAString: for DNA
RNAString: for RNA
AAString: for amino acid
BString: for any string

`XStringSet` for many sequences

DNAStringSet: for DNA
RNAStringSet: for RNA
AAStringSet: for amino acid
BStringSet: for any string

`QualityScaleXStringSet` for sequences with quality data

QualityScaledDNAStringSet: for DNA
QualityScaledRNAStringSet: for RNA
QualityScaledAAStringSet: for amino acid
QualityScaledBStringSet: for any string

Sequence Import and Export

Download the following sequences to your current working directory and then import them into R: https://ftp.ncbi.nlm.nih.gov/genomes/archive/old_genbank/Bacteria/Halobacterium_sp_uid217/AE004437.ffn

dir.create("data", showWarnings = FALSE)
# system("wget https://ftp.ncbi.nlm.nih.gov/genomes/archive/old_genbank/Bacteria/Halobacterium_sp_uid217/AE004437.ffn")
download.file("https://ftp.ncbi.nlm.nih.gov/genomes/archive/old_genbank/Bacteria/Halobacterium_sp_uid217/AE004437.ffn", "data/AE004437.ffn")

Import FASTA file with readDNAStringSet

myseq <- readDNAStringSet("data/AE004437.ffn")
myseq[1:3]

DNAStringSet object of length 3:
    width seq                                                                                                                                                                                           names
[1]  1206 ATGACTCGGCGGTCTCGTGTCGGTGCCGGCCTCGCAGCCATTGTACTGGCCCTGGCCGCAGTGTCGGCTGCCGCTCCGATTGCCGGGGCGCAG...AGCGGTGGCGGGTTACCGCTGTTCAAGATCGGGGGCGCTGTCGCTGTGATTGCGATCGTCGTCGTCGTTGTTCGACGCTGGCGGAACCCATGA gi|12057215|gb|AE...
[2]   666 ATGAGCATCATCGAACTCGAAGGCGTGGTCAAACGGTACGAAACCGGTGCCGAGACAGTCGAGGCGCTGAAAGGCGTTGACTTCTCGGCGGCG...AACATCGCCGTGGTTGCGATCACTCACGACACGCAACTCGAGGAGTTCTCCGACCGCGCAGTCAACCTCGTCGATGGGGTGTTACACACGTGA gi|12057215|gb|AE...
[3]  1110 ATGGCGTGGCGGAACCTCGGGCGGAACCGCGTGCGGACTGCGCTGGCCGCGCTCGGGATCGTGATCGGTGTGATCTCGATCGCATCGATGGGG...TTCCTGTTCGCGGTCTTCGCCAGCCTGCTCAGCGGGCTCTATCCGGCGTGGAAAGCAGCCAACGATCCGCCCGTCGAGGCGCTCGGCGAATGA gi|12057215|gb|AE...

Subset sequences with regular expression on sequence name field

sub <- myseq[grep("99.*", names(myseq))]
length(sub)

[1] 170

Export subsetted sequences to FASTA file

writeXStringSet(sub, file="./data/AE004437sub.ffn", width=80)

Now inspect exported sequence file AE004437sub.ffn in a text editor

Working with `XString` Containers

The XString stores the different types of biosequences in dedicated containers

library(Biostrings)
d <- DNAString("GCATAT-TAC")
d

10-letter DNAString object
seq: GCATAT-TAC

d[1:4]

4-letter DNAString object
seq: GCAT

RNA sequences

r <- RNAString("GCAUAU-UAC")
r <- RNAString(d) # Converts d to RNAString object
r

10-letter RNAString object
seq: GCAUAU-UAC

Protein sequences

p <- AAString("HCWYHH")
p

6-letter AAString object
seq: HCWYHH

Any type of character strings

b <- BString("I store any set of characters. Other XString objects store only the IUPAC characters.")
b

85-letter BString object
seq: I store any set of characters. Other XString objects store only the IUPAC characters.

Working with `XStringSet` Containers

XStringSet containers allow to store many biosequences in one object

dset <- DNAStringSet(c("GCATATTAC", "AATCGATCC", "GCATATTAC"))
names(dset) <- c("seq1", "seq2", "seq3") # Assigns names
dset[1:2]

DNAStringSet object of length 2:
    width seq                                                                                                                                                                                           names
[1]     9 GCATATTAC                                                                                                                                                                                     seq1
[2]     9 AATCGATCC                                                                                                                                                                                     seq2

Important utilities for XStringSet containers

width(dset) # Returns the length of each sequences

[1] 9 9 9

d <- dset[[1]] # The [[ subsetting operator returns a single entry as XString object
dset2 <- c(dset, dset) # Appends/concatenates two XStringSet objects
dsetchar <- as.character(dset) # Converts XStringSet to named vector
dsetone <- unlist(dset) # Collapses many sequences to a single one stored in a DNAString container

Sequence subsetting by positions:

DNAStringSet(dset, start=c(1,2,3), end=c(4,8,5))

DNAStringSet object of length 3:
    width seq                                                                                                                                                                                           names
[1]     4 GCAT                                                                                                                                                                                          seq1
[2]     7 ATCGATC                                                                                                                                                                                       seq2
[3]     3 ATA                                                                                                                                                                                           seq3

Multiple Alignment Class

The XMultipleAlignment class stores the different types of multiple sequence alignments:

origMAlign <- readDNAMultipleAlignment(filepath = system.file("extdata",
              "msx2_mRNA.aln", package = "Biostrings"), format = "clustal")
origMAlign

DNAMultipleAlignment with 8 rows and 2343 columns
     aln                                                                                                                                                                                                names
[1] -----TCCCGTCTCCGCAGCAAAAAAGTTTGAGTCGCCGCTGCCGGGTTGCCAGCGGAGTCGCGCGTCGGGAGCTACGTAGGGCAGAGAAGTCA-T...GAAGAGTTATCTCTTATTCTGAATT--AAATTAAGC--ATTTGTTTTATTGCAGTAAAGTTTGTCCAAACTCACAATTAAAAAAAAAAAAAAAAA gi|84452153|ref|N...
[2] ---------------------------------------------------------------------------------------------A-T...----------------------------------------------------------------------------------------------- gi|208431713|ref|...
[3] -----------------------------------------------------------------------------------GAGAGAAGTCA-T...----------------------------------------------------------------------------------------------- gi|118601823|ref|...
[4] ----------------------AAAAGTTGGAGTCTTCGCTTGAGAGTTGCCAGCGGAGTCGCGCGCCGACAGCTACGCGGCGCAGA-AAGTCA-T...GAAGAGTTATTTCTTATCTCTTACTCTGAATTAAATTAAAATATTTTATTGCAGT---------------------------------------- gi|114326503|ref|...
[5] ---------------------------------------------------------------------------------------------A-T...GAAGAGTTATTTCTTATCTCATACTCTGAATTAAATTAAAATGTTTTATTGCAGTAAA------------------------------------- gi|119220589|ref|...
[6] ---------------------------------------------------------------------------------------------A-T...----------------------------------------------------------------------------------------------- gi|148540149|ref|...
[7] --------------CGGCTCCGCAGCGCCTCACTCGCGCAGTCCCCGCGCAGGGCCGGGCAGAGGCGCACGCAGCTCCCCGGGCGGCCCCGCTC-C...----------------------------------------------------------------------------------------------- gi|45383056|ref|N...
[8] GGGGGAGACTTCAGAAGTTGTTGTCCTCTCCGCTGATAACAGTTGAGATGCGCATATTATTATTACCTTTAGGACAAGTTGAATGTGTTCGTCAAC...----------------------------------------------------------------------------------------------- gi|213515133|ref|...

Basic Sequence Manipulations

Reverse and Complement

randset <- DNAStringSet(rand)
complement(randset[1:2])

DNAStringSet object of length 2:
    width seq
[1]    17 TCGAGTCTACGAATTGA
[2]    15 TGGCAAGAGATCATA

reverse(randset[1:2])

DNAStringSet object of length 2:
    width seq
[1]    17 TCAATTCGTAGACTCGA
[2]    15 TATGATCTCTTGCCA

reverseComplement(randset[1:2])

DNAStringSet object of length 2:
    width seq
[1]    17 AGTTAAGCATCTGAGCT
[2]    15 ATACTAGAGAACGGT

Translate DNA into Protein

translate(randset[1:2])

AAStringSet object of length 2:
    width seq
[1]     5 SSDA*
[2]     5 TVL*Y

Pattern Matching

Pattern matching with mismatches

Find pattern matches in reference

myseq1 <- readDNAStringSet("./data/AE004437.ffn")
mypos <- matchPattern("ATGGTG", myseq1[[1]], max.mismatch=1)

Count only the corresponding matches

countPattern("ATGGCT", myseq1[[1]], max.mismatch=1)

[1] 3

Count matches in many sequences

vcountPattern("ATGGCT", myseq1, max.mismatch=1)[1:20]

 [1] 3 0 5 4 1 2 2 1 4 3 0 0 1 2 0 1 4 0 0 1

Results shown in DNAStringSet object

tmp <- c(DNAStringSet("ATGGTG"), DNAStringSet(mypos))

Return a consensus matrix for query and hits

consensusMatrix(tmp)[1:4,]

  [,1] [,2] [,3] [,4] [,5] [,6]
A    3    0    0    0    0    0
C    1    1    0    0    0    0
G    0    0    4    4    1    4
T    0    3    0    0    3    0

Find all pattern matches in reference

myvpos <- vmatchPattern("ATGGCT", myseq1, max.mismatch=1)
myvpos # The results are stored as MIndex object.

MIndex object of length 2058
$`gi|12057215|gb|AE004437.1|:248-1453 Halobacterium sp. NRC-1, complete genome`
IRanges object with 3 ranges and 0 metadata columns:
          start       end     width
      <integer> <integer> <integer>
  [1]         1         6         6
  [2]       383       388         6
  [3]       928       933         6

$`gi|12057215|gb|AE004437.1|:1450-2115 Halobacterium sp. NRC-1, complete genome`
IRanges object with 0 ranges and 0 metadata columns:
       start       end     width
   <integer> <integer> <integer>

$`gi|12057215|gb|AE004437.1|:2145-3254 Halobacterium sp. NRC-1, complete genome`
IRanges object with 5 ranges and 0 metadata columns:
          start       end     width
      <integer> <integer> <integer>
  [1]         1         6         6
  [2]        94        99         6
  [3]       221       226         6
  [4]       535       540         6
  [5]       601       606         6

...
<2055 more elements>

Views(myseq1[[1]], start(myvpos[[1]]), end(myvpos[[1]])) # Retrieves the result for single entry

Views on a 1206-letter DNAString subject
subject: ATGACTCGGCGGTCTCGTGTCGGTGCCGGCCTCGCAGCCATTGTACTGGCCCTGGCCGCAGTGTCGGCTGCCGCTCCGATTGCCGGGGCGCAGTCCGCCGGCAG...CCAACGGCGCGAGCGGTGGCGGGTTACCGCTGTTCAAGATCGGGGGCGCTGTCGCTGTGATTGCGATCGTCGTCGTCGTTGTTCGACGCTGGCGGAACCCATGA
views:
      start end width
  [1]     1   6     6 [ATGACT]
  [2]   383 388     6 [ATGGCA]
  [3]   928 933     6 [ATGACT]

Return all matches

sapply(names(myseq1), function(x)
       as.character(Views(myseq1[[x]], start(myvpos[[x]]), end(myvpos[[x]]))))[1:4]

Pattern matching with regular expression support

myseq <- DNAStringSet(c("ATGCAGACATAGTG", "ATGAACATAGATCC", "GTACAGATCAC"))
myseq[grep("^ATG", myseq, perl=TRUE)] # String searching with regular expression support

DNAStringSet object of length 2:
    width seq
[1]    14 ATGCAGACATAGTG
[2]    14 ATGAACATAGATCC

pos1 <- regexpr("AT", myseq) # Searches 'myseq' for first match of pattern "AT"
as.numeric(pos1); attributes(pos1)$match.length # Returns position information of matches

[1] 1 1 7

[1] 2 2 2

pos2 <- gregexpr("AT", myseq) # Searches 'myseq' for all matches of pattern "AT"
as.numeric(pos2[[1]]); attributes(pos2[[1]])$match.length # Match positions in first sequence

[1] 1 9

[1] 2 2

DNAStringSet(gsub("^ATG", "NNN", myseq)) # String substitution with regular expression support

DNAStringSet object of length 3:
    width seq
[1]    14 NNNCAGACATAGTG
[2]    14 NNNAACATAGATCC
[3]    11 GTACAGATCAC

PWM Viewing and Searching

Plot with `seqLogo`

library(seqLogo)
pwm <- PWM(DNAStringSet(c("GCT", "GGT", "GCA")))
pwm

       [,1]      [,2]      [,3]
A 0.0000000 0.0000000 0.2312611
C 0.0000000 0.3157205 0.0000000
G 0.3685591 0.2312611 0.0000000
T 0.0000000 0.0000000 0.3157205

seqLogo(t(t(pwm) * 1/colSums(pwm)))

Plot with `ggseqlogo`

The ggseqlogo package (manual) provides many customization options for plotting sequence logos. It also supports various alphabets including sequence logos for amino acid sequences.

library(ggplot2); library(ggseqlogo)
pwm <- PWM(DNAStringSet(c("GCT", "GGT", "GCA")))
ggseqlogo(pwm)

Search sequence for PWM matches with score better than min.score

chr <- DNAString("AAAGCTAAAGGTAAAGCAAAA")
matchPWM(pwm, chr, min.score=0.9)

Views on a 21-letter DNAString subject
subject: AAAGCTAAAGGTAAAGCAAAA
views:
      start end width
  [1]     4   6     3 [GCT]
  [2]    10  12     3 [GGT]
  [3]    16  18     3 [GCA]

NGS Sequences

Sequence and Quality Data: FASTQ Format

Four lines per sequence:

ID
Sequence
ID
Base call qualities (Phred scores) as ASCII characters

The following gives an example of 3 Illumina reads in a FASTQ file. The numbers at the beginning of each line are not part of the FASTQ format. They have been added solely for illustration purposes.

1. @SRR038845.3 HWI-EAS038:6:1:0:1938 length=36
2. CAACGAGTTCACACCTTGGCCGACAGGCCCGGGTAA
3. +SRR038845.3 HWI-EAS038:6:1:0:1938 length=36
4. BA@7>B=>:>>7@7@>>9=BAA?;>52;>:9=8.=A
1. @SRR038845.41 HWI-EAS038:6:1:0:1474 length=36
2. CCAATGATTTTTTTCCGTGTTTCAGAATACGGTTAA
3. +SRR038845.41 HWI-EAS038:6:1:0:1474 length=36
4. BCCBA@BB@BBBBAB@B9B@=BABA@A:@693:@B=
1. @SRR038845.53 HWI-EAS038:6:1:1:360 length=36
2. GTTCAAAAAGAACTAAATTGTGTCAATAGAAAACTC
3. +SRR038845.53 HWI-EAS038:6:1:1:360 length=36
4. BBCBBBBBB@@BAB?BBBBCBC>BBBAA8>BBBAA@

Sequence and Quality Data: `QualityScaleXStringSet`

Phred quality scores are integers from 0-50 that are stored as ASCII characters after adding 33. The basic R functions rawToChar and charToRaw can be used to interconvert among their representations.

Phred score interconversion

phred <- 1:9
phreda <- paste(sapply(as.raw((phred)+33), rawToChar), collapse="")
phreda

[1] "\"#$%&'()*"

as.integer(charToRaw(phreda))-33

[1] 1 2 3 4 5 6 7 8 9

Construct QualityScaledDNAStringSet from scratch

dset <- DNAStringSet(sapply(1:100, function(x) paste(sample(c("A","T","G","C"), 20, replace=T), collapse=""))) # Creates random sample sequence.
myqlist <- lapply(1:100, function(x) sample(1:40, 20, replace=T)) # Creates random Phred score list.
myqual <- sapply(myqlist, function(x) toString(PhredQuality(x))) # Converts integer scores into ASCII characters.
myqual <- PhredQuality(myqual) # Converts to a PhredQuality object.
dsetq1 <- QualityScaledDNAStringSet(dset, myqual) # Combines DNAStringSet and quality data in QualityScaledDNAStringSet object.
dsetq1[1:2]

  A QualityScaledDNAStringSet instance containing:

DNAStringSet object of length 2:
    width seq
[1]    20 CGCCAAGGTGCGCACCCCGT
[2]    20 CTATGCCGTAAGTAATTGCA

PhredQuality object of length 2:
    width seq
[1]    20 7F-/*)I=>4@(7B#&4E1&
[2]    20 >C#;>"'0,HAGD$%C:/E,

Processing FASTQ Files with ShortRead

The following explains the basic usage of ShortReadQ objects. To make the sample code work, download and unzip this file to your current working directory. The following code performs the download for you.

library(ShortRead)
download.file("https://cluster.hpcc.ucr.edu/~tgirke/HTML_Presentations/Manuals/testdata/samplefastq/data.zip", "data.zip")
unzip("data.zip")

Important utilities for accessing FASTQ files

fastq <- list.files("data", "*.fastq$"); fastq <- paste("data/", fastq, sep="")
names(fastq) <- paste("flowcell6_lane", 1:length(fastq), sep="_")
(fq <- readFastq(fastq[1])) # Imports first FASTQ file

class: ShortReadQ
length: 1000 reads; width: 36 cycles

countLines(dirPath="./data", pattern=".fastq$")/4 # Counts numbers of reads in FASTQ files

SRR038845.fastq SRR038846.fastq SRR038848.fastq SRR038850.fastq
           1000            1000            1000            1000

id(fq)[1] # Returns ID field

BStringSet object of length 1:
    width seq
[1]    43 SRR038845.3 HWI-EAS038:6:1:0:1938 length=36

sread(fq)[1] # Returns sequence

DNAStringSet object of length 1:
    width seq
[1]    36 CAACGAGTTCACACCTTGGCCGACAGGCCCGGGTAA

quality(fq)[1] # Returns Phred scores

class: FastqQuality
quality:
BStringSet object of length 1:
    width seq
[1]    36 BA@7>B=>:>>7@7@>>9=BAA?;>52;>:9=8.=A

as(quality(fq), "matrix")[1:4,1:12] # Coerces Phred scores to numeric matrix

     [,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] [,10] [,11] [,12]
[1,]   33   32   31   22   29   33   28   29   25    29    29    22
[2,]   33   34   34   33   32   31   33   33   31    33    33    33
[3,]   33   33   34   33   33   33   33   33   33    31    31    33
[4,]   33   33   33   33   31   33   28   31   28    32    33    33

ShortReadQ(sread=sread(fq), quality=quality(fq), id=id(fq)) # Constructs a ShortReadQ from components

class: ShortReadQ
length: 1000 reads; width: 36 cycles

FASTQ Quality Reports

Using `systemPipeR`

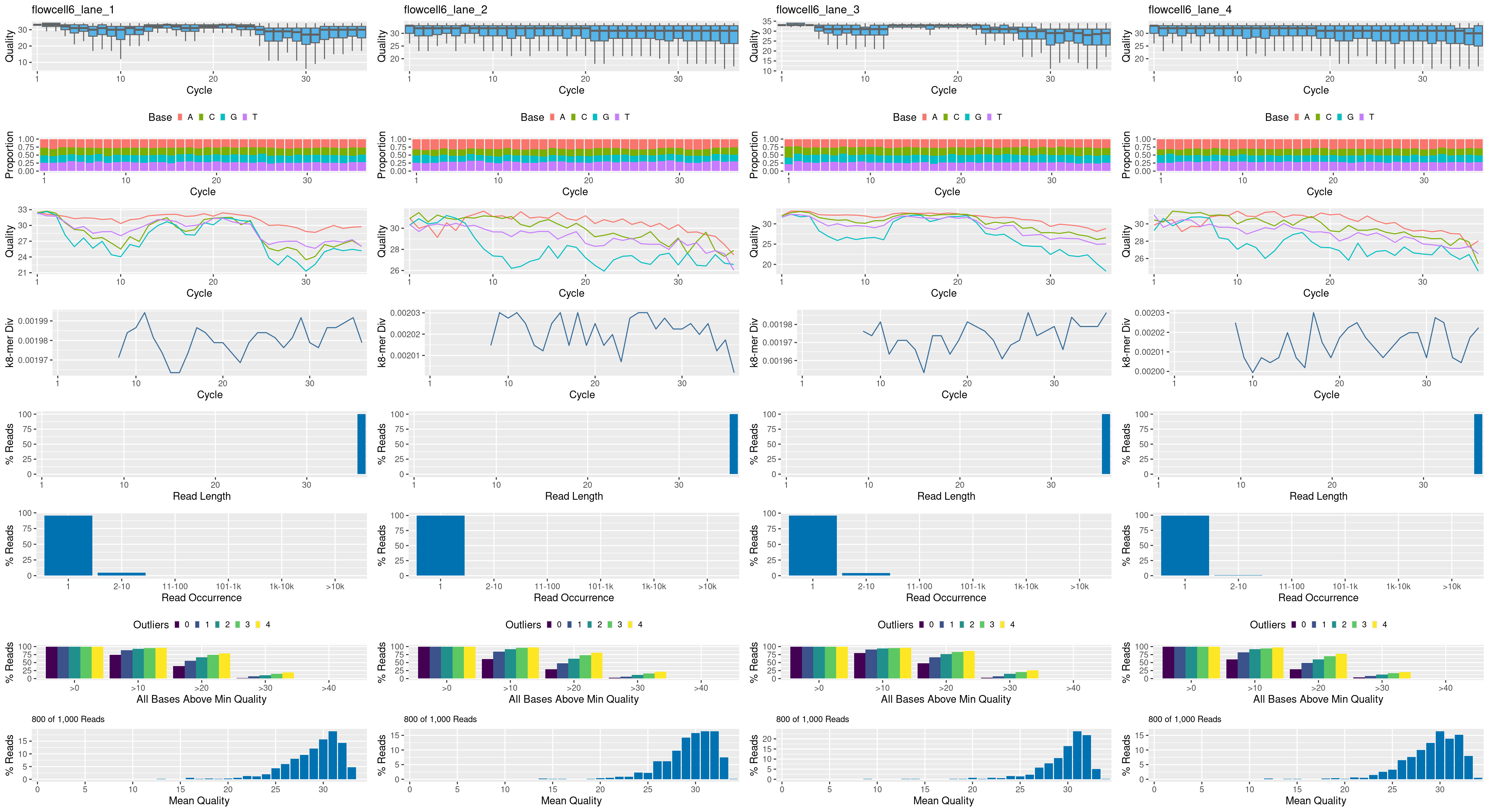

The following seeFastq and seeFastqPlot functions generate and plot a series of useful quality statistics for a set of FASTQ files.

library(systemPipeR)
fqlist <- seeFastq(fastq=fastq, batchsize=800, klength=8) # For real data set batchsize to at least 10^5
seeFastqPlot(fqlist)

Handles many samples in one PDF file. For more details see here

Using `ShortRead`

The ShortRead package contains several FASTQ quality reporting functions.

sp <- SolexaPath(system.file('extdata', package='ShortRead'))
fl <- file.path(analysisPath(sp), "s_1_sequence.txt")
fls <- c(fl, fl)
coll <- QACollate(QAFastqSource(fls), QAReadQuality(), QAAdapterContamination(),
        QANucleotideUse(), QAQualityUse(), QASequenceUse(), QAFrequentSequence(n=10),
        QANucleotideByCycle(), QAQualityByCycle())
x <- qa2(coll, verbose=TRUE)
res <- report(x)
if(interactive())
browseURL(res)

Filtering and Trimming FASTQ Files with ShortRead

Adaptor trimming

fqtrim <- trimLRPatterns(Rpattern="GCCCGGGTAA", subject=fq)
sread(fq)[1:2] # Before trimming

DNAStringSet object of length 2:
    width seq
[1]    36 CAACGAGTTCACACCTTGGCCGACAGGCCCGGGTAA
[2]    36 CCAATGATTTTTTTCCGTGTTTCAGAATACGGTTAA

sread(fqtrim)[1:2] # After trimming

DNAStringSet object of length 2:
    width seq
[1]    26 CAACGAGTTCACACCTTGGCCGACAG
[2]    36 CCAATGATTTTTTTCCGTGTTTCAGAATACGGTTAA

Read counting and duplicate removal

tables(fq)$distribution # Counts read occurences

sum(srduplicated(fq)) # Identifies duplicated reads

[1] 26

fq[!srduplicated(fq)]

class: ShortReadQ
length: 974 reads; width: 36 cycles

Trimming low quality tails

cutoff <- 30
cutoff <- rawToChar(as.raw(cutoff+33))
sread(trimTails(fq, k=2, a=cutoff, successive=FALSE))[1:2]

DNAStringSet object of length 2:
    width seq
[1]     4 CAAC
[2]    20 CCAATGATTTTTTTCCGTGT

Removal of reads with Phred scores below a threshold value

cutoff <- 30
qcount <- rowSums(as(quality(fq), "matrix") <= 20)
fq[qcount == 0] # Number of reads where all Phred scores >= 20

class: ShortReadQ
length: 349 reads; width: 36 cycles

Removal of reads with x Ns and/or low complexity segments

filter1 <- nFilter(threshold=1) # Keeps only reads without Ns
filter2 <- polynFilter(threshold=20, nuc=c("A","T","G","C")) # Removes reads with nucleotide bias, >=20 of any base
filter <- compose(filter1, filter2)
fq[filter(fq)]

class: ShortReadQ
length: 989 reads; width: 36 cycles

Memory Efficient FASTQ Processing

Streaming through FASTQ files with FastqStreamer and random sampling reads with FastqSampler

fq <- yield(FastqStreamer(fastq[1], 50)) # Imports first 50 reads
fq <- yield(FastqSampler(fastq[1], 50)) # Random samples 50 reads

Streaming through a FASTQ file while applying filtering/trimming functions and writing the results to a new file here SRR038845.fastq_sub in data directory.

f <- FastqStreamer(fastq[1], 50)
while(length(fq <- yield(f))) {
    fqsub <- fq[grepl("^TT", sread(fq))]
    writeFastq(fqsub, paste(fastq[1], "sub", sep="_"), mode="a", compress=FALSE)
}
close(f)

Range Operations

Important Data Objects for Range Operations

IRanges: stores range data only (IRanges library)
GRanges: stores ranges and annotations (GenomicRanges library)
GRangesList: list version of GRanges container (GenomicRanges library)

Range Data Are Stored in `IRanges` and `GRanges` Containers

Construct `GRanges` Object

The following works with information that relates to GFF/GTF file format. The defintions of the GFF/GTF file format are here.

library(GenomicRanges); library(rtracklayer)
gr <- GRanges(seqnames = Rle(c("chr1", "chr2", "chr1", "chr3"), c(1, 3, 2, 4)), ranges = IRanges(1:10, end = 7:16, names = head(letters, 10)), strand = Rle(strand(c("-", "+", "*", "+", "-")), c(1, 2, 2, 3, 2)), score = 1:10, GC = seq(1, 0, length = 10)) # Example of creating a GRanges object with its constructor function.

Import GFF into `GRanges` Object

gff <- import.gff("https://cluster.hpcc.ucr.edu/~tgirke/Documents/R_BioCond/Samples/gff3.gff") # Imports a simplified GFF3 genome annotation file.
seqlengths(gff) <- end(ranges(gff[which(values(gff)[,"type"]=="chromosome"),]))
names(gff) <- 1:length(gff) # Assigns names to corresponding slot
gff[1:4,]

GRanges object with 4 ranges and 10 metadata columns:
    seqnames     ranges strand |   source       type     score     phase                  ID        Name                Note          Parent       Index Derives_from
       <Rle>  <IRanges>  <Rle> | <factor>   <factor> <numeric> <integer>         <character> <character>     <CharacterList> <CharacterList> <character>  <character>
  1     Chr1 1-30427671      + |   TAIR10 chromosome        NA      <NA>                Chr1        Chr1                                            <NA>         <NA>
  2     Chr1  3631-5899      + |   TAIR10 gene              NA      <NA>           AT1G01010   AT1G01010 protein_coding_gene                        <NA>         <NA>
  3     Chr1  3631-5899      + |   TAIR10 mRNA              NA      <NA>         AT1G01010.1 AT1G01010.1                           AT1G01010           1         <NA>
  4     Chr1  3760-5630      + |   TAIR10 protein           NA      <NA> AT1G01010.1-Protein AT1G01010.1                                            <NA>  AT1G01010.1
  -------
  seqinfo: 7 sequences from an unspecified genome

seqinfo(gff)

Seqinfo object with 7 sequences from an unspecified genome:
  seqnames seqlengths isCircular genome
  Chr1       30427671         NA   <NA>
  Chr2       19698289         NA   <NA>
  Chr3       23459830         NA   <NA>
  Chr4       18585056         NA   <NA>
  Chr5       26975502         NA   <NA>
  ChrC         154478         NA   <NA>
  ChrM         366924         NA   <NA>

Coerce `GRanges` object to `data.frame`

as.data.frame(gff)[1:4, 1:7]

Utilities for Range Containers

Accessor and subsetting methods for GRanges objects

Subsetting and replacement

gff[1:4]

GRanges object with 4 ranges and 10 metadata columns:
    seqnames     ranges strand |   source       type     score     phase                  ID        Name                Note          Parent       Index Derives_from
       <Rle>  <IRanges>  <Rle> | <factor>   <factor> <numeric> <integer>         <character> <character>     <CharacterList> <CharacterList> <character>  <character>
  1     Chr1 1-30427671      + |   TAIR10 chromosome        NA      <NA>                Chr1        Chr1                                            <NA>         <NA>
  2     Chr1  3631-5899      + |   TAIR10 gene              NA      <NA>           AT1G01010   AT1G01010 protein_coding_gene                        <NA>         <NA>
  3     Chr1  3631-5899      + |   TAIR10 mRNA              NA      <NA>         AT1G01010.1 AT1G01010.1                           AT1G01010           1         <NA>
  4     Chr1  3760-5630      + |   TAIR10 protein           NA      <NA> AT1G01010.1-Protein AT1G01010.1                                            <NA>  AT1G01010.1
  -------
  seqinfo: 7 sequences from an unspecified genome

gff[1:4, c("type", "ID")]

GRanges object with 4 ranges and 2 metadata columns:
    seqnames     ranges strand |       type                  ID
       <Rle>  <IRanges>  <Rle> |   <factor>         <character>
  1     Chr1 1-30427671      + | chromosome                Chr1
  2     Chr1  3631-5899      + | gene                 AT1G01010
  3     Chr1  3631-5899      + | mRNA               AT1G01010.1
  4     Chr1  3760-5630      + | protein    AT1G01010.1-Protein
  -------
  seqinfo: 7 sequences from an unspecified genome

gff[2] <- gff[3]

GRanges objects can be concatenated with the c function

c(gff[1:2], gff[401:402])

GRanges object with 4 ranges and 10 metadata columns:
      seqnames     ranges strand |   source           type     score     phase                  ID        Name            Note          Parent       Index Derives_from
         <Rle>  <IRanges>  <Rle> | <factor>       <factor> <numeric> <integer>         <character> <character> <CharacterList> <CharacterList> <character>  <character>
    1     Chr1 1-30427671      + |   TAIR10 chromosome            NA      <NA>                Chr1        Chr1                                        <NA>         <NA>
    2     Chr1  3631-5899      + |   TAIR10 mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                       AT1G01010           1         <NA>
  401     Chr5  5516-5769      - |   TAIR10 protein               NA      <NA> AT5G01015.2-Protein AT5G01015.2                                        <NA>  AT5G01015.2
  402     Chr5  5770-5801      - |   TAIR10 five_prime_UTR        NA      <NA>                <NA>        <NA>                     AT5G01015.2        <NA>         <NA>
  -------
  seqinfo: 7 sequences from an unspecified genome

Acessor functions

seqnames(gff)

factor-Rle of length 449 with 7 runs
  Lengths:   72   22   38  118  172   13   14
  Values : Chr1 Chr2 Chr3 Chr4 Chr5 ChrC ChrM
Levels(7): Chr1 Chr2 Chr3 Chr4 Chr5 ChrC ChrM

ranges(gff)

IRanges object with 449 ranges and 0 metadata columns:
          start       end     width
      <integer> <integer> <integer>
    1         1  30427671  30427671
    2      3631      5899      2269
    3      3631      5899      2269
    4      3760      5630      1871
    5      3631      3913       283
  ...       ...       ...       ...
  445     11918     12241       324
  446     11918     12241       324
  447     11918     12241       324
  448     11918     12241       324
  449     11918     12241       324

strand(gff)

factor-Rle of length 449 with 13 runs
  Lengths:  18  54  28  21  12 117   1 171   1  12   1   8   5
  Values :   +   -   +   -   +   -   +   -   +   -   +   -   +
Levels(3): + - *

seqlengths(gff)

    Chr1     Chr2     Chr3     Chr4     Chr5     ChrC     ChrM
30427671 19698289 23459830 18585056 26975502   154478   366924

start(gff[1:4])

[1]    1 3631 3631 3760

end(gff[1:4])

[1] 30427671     5899     5899     5630

width(gff[1:4])

[1] 30427671     2269     2269     1871

Accessing metadata component

values(gff) # or elementMetadata(gff)

DataFrame with 449 rows and 10 columns
      source       type     score     phase                  ID        Name                Note                          Parent       Index Derives_from
    <factor>   <factor> <numeric> <integer>         <character> <character>     <CharacterList>                 <CharacterList> <character>  <character>
1     TAIR10 chromosome        NA        NA                Chr1        Chr1                                                              NA           NA
2     TAIR10 mRNA              NA        NA         AT1G01010.1 AT1G01010.1                                           AT1G01010           1           NA
3     TAIR10 mRNA              NA        NA         AT1G01010.1 AT1G01010.1                                           AT1G01010           1           NA
4     TAIR10 protein           NA        NA AT1G01010.1-Protein AT1G01010.1                                                              NA  AT1G01010.1
5     TAIR10 exon              NA        NA                  NA          NA                                         AT1G01010.1          NA           NA
...      ...        ...       ...       ...                 ...         ...                 ...                             ...         ...          ...
445   TAIR10    gene           NA        NA           ATMG00030   ATMG00030 protein_coding_gene                                          NA           NA
446   TAIR10    mRNA           NA        NA         ATMG00030.1 ATMG00030.1                                           ATMG00030           1           NA
447   TAIR10    protein        NA        NA ATMG00030.1-Protein ATMG00030.1                                                              NA  ATMG00030.1
448   TAIR10    exon           NA        NA                  NA          NA                                         ATMG00030.1          NA           NA
449   TAIR10    CDS            NA         0                  NA          NA                     ATMG00030.1,ATMG00030.1-Protein          NA           NA

values(gff)[, "type"][1:20]

 [1] chromosome      mRNA            mRNA            protein         exon            five_prime_UTR  CDS             exon            CDS             exon            CDS             exon            CDS
[14] exon            CDS             exon            CDS             three_prime_UTR gene            mRNA
Levels: chromosome gene mRNA protein exon five_prime_UTR CDS three_prime_UTR rRNA tRNA

gff[values(gff)[ ,"type"] == "gene"]

GRanges object with 21 ranges and 10 metadata columns:
      seqnames      ranges strand |   source     type     score     phase          ID        Name                Note          Parent       Index Derives_from
         <Rle>   <IRanges>  <Rle> | <factor> <factor> <numeric> <integer> <character> <character>     <CharacterList> <CharacterList> <character>  <character>
   19     Chr1   5928-8737      - |   TAIR10     gene        NA      <NA>   AT1G01020   AT1G01020 protein_coding_gene                        <NA>         <NA>
   64     Chr1 11649-13714      - |   TAIR10     gene        NA      <NA>   AT1G01030   AT1G01030 protein_coding_gene                        <NA>         <NA>
   74     Chr2   1025-2810      + |   TAIR10     gene        NA      <NA>   AT2G01008   AT2G01008 protein_coding_gene                        <NA>         <NA>
   84     Chr2   3706-5513      + |   TAIR10     gene        NA      <NA>   AT2G01010   AT2G01010                rRNA                        <NA>         <NA>
   87     Chr2   5782-5945      + |   TAIR10     gene        NA      <NA>   AT2G01020   AT2G01020                rRNA                        <NA>         <NA>
  ...      ...         ...    ... .      ...      ...       ...       ...         ...         ...                 ...             ...         ...          ...
  427     ChrC    383-1444      - |   TAIR10     gene        NA      <NA>   ATCG00020   ATCG00020 protein_coding_gene                        <NA>         <NA>
  432     ChrC   1717-4347      - |   TAIR10     gene        NA      <NA>   ATCG00030   ATCG00030                tRNA                        <NA>         <NA>
  437     ChrM     273-734      - |   TAIR10     gene        NA      <NA>   ATMG00010   ATMG00010 protein_coding_gene                        <NA>         <NA>
  442     ChrM  8848-11415      - |   TAIR10     gene        NA      <NA>   ATMG00020   ATMG00020                rRNA                        <NA>         <NA>
  445     ChrM 11918-12241      + |   TAIR10     gene        NA      <NA>   ATMG00030   ATMG00030 protein_coding_gene                        <NA>         <NA>
  -------
  seqinfo: 7 sequences from an unspecified genome

Useful utilities for GRanges objects

Remove chromosome ranges

gff <- gff[values(gff)$type != "chromosome"]

Erase the strand information

strand(gff) <- "*"

Collapses overlapping ranges to continuous ranges. To ignore strand information, include argument ignore.strand=TRUE.

reduce(gff)

GRanges object with 22 ranges and 0 metadata columns:
       seqnames      ranges strand
          <Rle>   <IRanges>  <Rle>
   [1]     Chr1   3631-5899      *
   [2]     Chr1   5928-8737      *
   [3]     Chr1 11649-13714      *
   [4]     Chr2   1025-2810      *
   [5]     Chr2   3706-5513      *
   ...      ...         ...    ...
  [18]     ChrC    383-1444      *
  [19]     ChrC   1717-4347      *
  [20]     ChrM     273-734      *
  [21]     ChrM  8848-11415      *
  [22]     ChrM 11918-12241      *
  -------
  seqinfo: 7 sequences from an unspecified genome

Return uncovered regions

gaps(gff)

GRanges object with 43 ranges and 0 metadata columns:
       seqnames       ranges strand
          <Rle>    <IRanges>  <Rle>
   [1]     Chr1   1-30427671      +
   [2]     Chr1   1-30427671      -
   [3]     Chr1       1-3630      *
   [4]     Chr1    5900-5927      *
   [5]     Chr1   8738-11648      *
   ...      ...          ...    ...
  [39]     ChrM     1-366924      -
  [40]     ChrM        1-272      *
  [41]     ChrM     735-8847      *
  [42]     ChrM  11416-11917      *
  [43]     ChrM 12242-366924      *
  -------
  seqinfo: 7 sequences from an unspecified genome

More intuitive way to get uncovered regions

setdiff(as(seqinfo(gff), "GRanges"), gff)

GRanges object with 29 ranges and 0 metadata columns:
       seqnames         ranges strand
          <Rle>      <IRanges>  <Rle>
   [1]     Chr1         1-3630      *
   [2]     Chr1      5900-5927      *
   [3]     Chr1     8738-11648      *
   [4]     Chr1 13715-30427671      *
   [5]     Chr2         1-1024      *
   ...      ...            ...    ...
  [25]     ChrC    4348-154478      *
  [26]     ChrM          1-272      *
  [27]     ChrM       735-8847      *
  [28]     ChrM    11416-11917      *
  [29]     ChrM   12242-366924      *
  -------
  seqinfo: 7 sequences from an unspecified genome

Return disjoint ranges

disjoin(gff)

GRanges object with 211 ranges and 0 metadata columns:
        seqnames      ranges strand
           <Rle>   <IRanges>  <Rle>
    [1]     Chr1   3631-3759      *
    [2]     Chr1   3760-3913      *
    [3]     Chr1   3914-3995      *
    [4]     Chr1   3996-4276      *
    [5]     Chr1   4277-4485      *
    ...      ...         ...    ...
  [207]     ChrC   1752-4310      *
  [208]     ChrC   4311-4347      *
  [209]     ChrM     273-734      *
  [210]     ChrM  8848-11415      *
  [211]     ChrM 11918-12241      *
  -------
  seqinfo: 7 sequences from an unspecified genome

Returns coverage of ranges

coverage(gff)

RleList of length 7
$Chr1
integer-Rle of length 30427671 with 45 runs
  Lengths:     3630      129      154       82      281      209      120      100      390       78      153 ...       48      106       96       71     2911      215     1077      233      161      380 30413957
  Values :        0        4        5        3        5        3        5        3        5        3        5 ...        9        5        9        7        0        4        5        4        2        4        0

$Chr2
integer-Rle of length 19698289 with 14 runs
  Lengths:     1024      248      185       53      362      239      699      895     1808      268      164      625      102 19691617
  Values :        0        5        3        5        3        5        4        0        3        0        3        0        5        0

$Chr3
integer-Rle of length 23459830 with 29 runs
  Lengths:     1652      145      139      111       95       80       60      145       99      163      120 ...      182      477      285       35      289      108       55      155      148      156 23453781
  Values :        0        4        5        3        5        3        5        3        5        3        5 ...        0        5        0        4        5        3        5        3        5        4        0

$Chr4
integer-Rle of length 18585056 with 72 runs
  Lengths:     1179      357     1358      128      872      212       20       23       23       54       38 ...      179      132      134       84       19      114       36      212      114       74 18571697
  Values :        0        5        0        5        3        6        7        9        7        5        7 ...        5        3        5        3        5        3        5        3        5        4        0

$Chr5
integer-Rle of length 26975502 with 64 runs
  Lengths:     1222       28       28      109       72       67       45       75       98       36      133 ...      482      421      124      104      137      128      435       76       55      174 26967058
  Values :        0        4        7       13       16       10       11       17        9       17        9 ...        5        3        5        3        5        3        5        3        5        4        0

...
<2 more elements>

Return the index pairings for overlapping ranges

findOverlaps(gff, gff[1:4])

Hits object with 55 hits and 0 metadata columns:
       queryHits subjectHits
       <integer>   <integer>
   [1]         1           1
   [2]         1           2
   [3]         1           4
   [4]         1           3
   [5]         2           1
   ...       ...         ...
  [51]        16           1
  [52]        16           2
  [53]        16           3
  [54]        17           1
  [55]        17           2
  -------
  queryLength: 442 / subjectLength: 4

Counts overlapping ranges

countOverlaps(gff, gff[1:4])[1:40]

 2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
 4  4  4  4  3  4  3  3  3  3  3  3  3  3  3  3  2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0

Return only overlapping ranges

subsetByOverlaps(gff, gff[1:4])

GRanges object with 17 ranges and 10 metadata columns:
     seqnames    ranges strand |   source            type     score     phase                  ID        Name            Note                          Parent       Index Derives_from
        <Rle> <IRanges>  <Rle> | <factor>        <factor> <numeric> <integer>         <character> <character> <CharacterList>                 <CharacterList> <character>  <character>
   2     Chr1 3631-5899      * |   TAIR10  mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                       AT1G01010           1         <NA>
   3     Chr1 3631-5899      * |   TAIR10  mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                       AT1G01010           1         <NA>
   4     Chr1 3760-5630      * |   TAIR10  protein               NA      <NA> AT1G01010.1-Protein AT1G01010.1                                                        <NA>  AT1G01010.1
   5     Chr1 3631-3913      * |   TAIR10  exon                  NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
   6     Chr1 3631-3759      * |   TAIR10  five_prime_UTR        NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
  ..      ...       ...    ... .      ...             ...       ...       ...                 ...         ...             ...                             ...         ...          ...
  14     Chr1 5174-5326      * |   TAIR10 exon                   NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
  15     Chr1 5174-5326      * |   TAIR10 CDS                    NA         0                <NA>        <NA>                 AT1G01010.1,AT1G01010.1-Protein        <NA>         <NA>
  16     Chr1 5439-5899      * |   TAIR10 exon                   NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
  17     Chr1 5439-5630      * |   TAIR10 CDS                    NA         0                <NA>        <NA>                 AT1G01010.1,AT1G01010.1-Protein        <NA>         <NA>
  18     Chr1 5631-5899      * |   TAIR10 three_prime_UTR        NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
  -------
  seqinfo: 7 sequences from an unspecified genome

GRangesList Objects

sp <- split(gff, seq(along=gff)) # Stores every range in separate component of a GRangesList object
split(gff, seqnames(gff)) # Stores ranges of each chromosome in separate component.

GRangesList object of length 7:
$Chr1
GRanges object with 71 ranges and 10 metadata columns:
     seqnames      ranges strand |   source            type     score     phase                  ID        Name            Note                          Parent       Index Derives_from
        <Rle>   <IRanges>  <Rle> | <factor>        <factor> <numeric> <integer>         <character> <character> <CharacterList>                 <CharacterList> <character>  <character>
   2     Chr1   3631-5899      * |   TAIR10  mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                       AT1G01010           1         <NA>
   3     Chr1   3631-5899      * |   TAIR10  mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                       AT1G01010           1         <NA>
   4     Chr1   3760-5630      * |   TAIR10  protein               NA      <NA> AT1G01010.1-Protein AT1G01010.1                                                        <NA>  AT1G01010.1
   5     Chr1   3631-3913      * |   TAIR10  exon                  NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
   6     Chr1   3631-3759      * |   TAIR10  five_prime_UTR        NA      <NA>                <NA>        <NA>                                     AT1G01010.1        <NA>         <NA>
  ..      ...         ...    ... .      ...             ...       ...       ...                 ...         ...             ...                             ...         ...          ...
  68     Chr1 13335-13714      * |   TAIR10 exon                   NA      <NA>                <NA>        <NA>                                     AT1G01030.1        <NA>         <NA>
  69     Chr1 12941-13173      * |   TAIR10 five_prime_UTR         NA      <NA>                <NA>        <NA>                                     AT1G01030.1        <NA>         <NA>
  70     Chr1 11864-12940      * |   TAIR10 CDS                    NA         0                <NA>        <NA>                 AT1G01030.1,AT1G01030.1-Protein        <NA>         <NA>
  71     Chr1 11649-11863      * |   TAIR10 three_prime_UTR        NA      <NA>                <NA>        <NA>                                     AT1G01030.1        <NA>         <NA>
  72     Chr1 11649-13173      * |   TAIR10 exon                   NA      <NA>                <NA>        <NA>                                     AT1G01030.1        <NA>         <NA>
  -------
  seqinfo: 7 sequences from an unspecified genome

...
<6 more elements>

unlist(sp) # Returns data as GRanges object

GRanges object with 442 ranges and 10 metadata columns:
          seqnames      ranges strand |   source           type     score     phase                  ID        Name                Note                          Parent       Index Derives_from
             <Rle>   <IRanges>  <Rle> | <factor>       <factor> <numeric> <integer>         <character> <character>     <CharacterList>                 <CharacterList> <character>  <character>
      1.2     Chr1   3631-5899      * |   TAIR10 mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                           AT1G01010           1         <NA>
      2.3     Chr1   3631-5899      * |   TAIR10 mRNA                  NA      <NA>         AT1G01010.1 AT1G01010.1                                           AT1G01010           1         <NA>
      3.4     Chr1   3760-5630      * |   TAIR10 protein               NA      <NA> AT1G01010.1-Protein AT1G01010.1                                                            <NA>  AT1G01010.1
      4.5     Chr1   3631-3913      * |   TAIR10 exon                  NA      <NA>                <NA>        <NA>                                         AT1G01010.1        <NA>         <NA>
      5.6     Chr1   3631-3759      * |   TAIR10 five_prime_UTR        NA      <NA>                <NA>        <NA>                                         AT1G01010.1        <NA>         <NA>
      ...      ...         ...    ... .      ...            ...       ...       ...                 ...         ...                 ...                             ...         ...          ...
  438.445     ChrM 11918-12241      * |   TAIR10        gene           NA      <NA>           ATMG00030   ATMG00030 protein_coding_gene                                        <NA>         <NA>
  439.446     ChrM 11918-12241      * |   TAIR10        mRNA           NA      <NA>         ATMG00030.1 ATMG00030.1                                           ATMG00030           1         <NA>
  440.447     ChrM 11918-12241      * |   TAIR10        protein        NA      <NA> ATMG00030.1-Protein ATMG00030.1                                                            <NA>  ATMG00030.1
  441.448     ChrM 11918-12241      * |   TAIR10        exon           NA      <NA>                <NA>        <NA>                                         ATMG00030.1        <NA>         <NA>
  442.449     ChrM 11918-12241      * |   TAIR10        CDS            NA         0                <NA>        <NA>                     ATMG00030.1,ATMG00030.1-Protein        <NA>         <NA>
  -------
  seqinfo: 7 sequences from an unspecified genome

sp[1:4, "type"] # Subsetting of GRangesList objects is similar to GRanges objects.

GRangesList object of length 4:
$`1`
GRanges object with 1 range and 1 metadata column:
    seqnames    ranges strand |     type
       <Rle> <IRanges>  <Rle> | <factor>
  2     Chr1 3631-5899      * |     mRNA
  -------
  seqinfo: 7 sequences from an unspecified genome

$`2`
GRanges object with 1 range and 1 metadata column:
    seqnames    ranges strand |     type
       <Rle> <IRanges>  <Rle> | <factor>
  3     Chr1 3631-5899      * |     mRNA
  -------
  seqinfo: 7 sequences from an unspecified genome

$`3`
GRanges object with 1 range and 1 metadata column:
    seqnames    ranges strand |     type
       <Rle> <IRanges>  <Rle> | <factor>
  4     Chr1 3760-5630      * |  protein
  -------
  seqinfo: 7 sequences from an unspecified genome

$`4`
GRanges object with 1 range and 1 metadata column:
    seqnames    ranges strand |     type
       <Rle> <IRanges>  <Rle> | <factor>
  5     Chr1 3631-3913      * |     exon
  -------
  seqinfo: 7 sequences from an unspecified genome

lapply(sp[1:4], length) # Looping over GRangesList objects similar to lists

$`1`
[1] 1

$`2`
[1] 1

$`3`
[1] 1

$`4`
[1] 1

Transcript Ranges

Storing annotation ranges in TranscriptDb databases makes many operations more robust and convenient.

library(txdbmaker)
download.file("https://cluster.hpcc.ucr.edu/~tgirke/Documents/R_BioCond/Samples/gff3.gff", "data/gff3.gff")
txdb <- makeTxDbFromGFF(file="data/gff3.gff", format="gff", dataSource="TAIR", organism="Arabidopsis thaliana")
saveDb(txdb, file="./data/TAIR10.sqlite")

TxDb object:
# Db type: TxDb
# Supporting package: GenomicFeatures
# Data source: TAIR
# Organism: Arabidopsis thaliana
# Taxonomy ID: 3702
# Genome: NA
# Nb of transcripts: 28
# Db created by: txdbmaker package from Bioconductor
# Creation time: 2026-03-23 16:58:13 -0700 (Mon, 23 Mar 2026)
# txdbmaker version at creation time: 1.6.2
# RSQLite version at creation time: 2.4.6
# DBSCHEMAVERSION: 1.2

txdb <- loadDb("./data/TAIR10.sqlite")
transcripts(txdb)

GRanges object with 28 ranges and 2 metadata columns:
       seqnames      ranges strand |     tx_id     tx_name
          <Rle>   <IRanges>  <Rle> | <integer> <character>
   [1]     Chr1   3631-5899      + |         1 AT1G01010.1
   [2]     Chr1   5928-8737      - |         2 AT1G01020.1
   [3]     Chr1   6790-8737      - |         3 AT1G01020.2
   [4]     Chr1 11649-13714      - |         4 AT1G01030.1
   [5]     Chr2   1025-2810      + |         5 AT2G01008.1
   ...      ...         ...    ... .       ...         ...
  [24]     ChrC    383-1444      - |        24 ATCG00020.1
  [25]     ChrC   1717-4347      - |        25 ATCG00030.1
  [26]     ChrM 11918-12241      + |        26 ATMG00030.1
  [27]     ChrM     273-734      - |        27 ATMG00010.1
  [28]     ChrM  8848-11415      - |        28 ATMG00020.1
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

transcriptsBy(txdb, by = "gene")

GRangesList object of length 22:
$AT1G01010
GRanges object with 1 range and 2 metadata columns:
      seqnames    ranges strand |     tx_id     tx_name
         <Rle> <IRanges>  <Rle> | <integer> <character>
  [1]     Chr1 3631-5899      + |         1 AT1G01010.1
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

$AT1G01020
GRanges object with 2 ranges and 2 metadata columns:
      seqnames    ranges strand |     tx_id     tx_name
         <Rle> <IRanges>  <Rle> | <integer> <character>
  [1]     Chr1 5928-8737      - |         2 AT1G01020.1
  [2]     Chr1 6790-8737      - |         3 AT1G01020.2
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

$AT1G01030
GRanges object with 1 range and 2 metadata columns:
      seqnames      ranges strand |     tx_id     tx_name
         <Rle>   <IRanges>  <Rle> | <integer> <character>
  [1]     Chr1 11649-13714      - |         4 AT1G01030.1
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

...
<19 more elements>

exonsBy(txdb, by = "gene")

GRangesList object of length 22:
$AT1G01010
GRanges object with 6 ranges and 2 metadata columns:
      seqnames    ranges strand |   exon_id   exon_name
         <Rle> <IRanges>  <Rle> | <integer> <character>
  [1]     Chr1 3631-3913      + |         1        <NA>
  [2]     Chr1 3996-4276      + |         2        <NA>
  [3]     Chr1 4486-4605      + |         3        <NA>
  [4]     Chr1 4706-5095      + |         4        <NA>
  [5]     Chr1 5174-5326      + |         5        <NA>
  [6]     Chr1 5439-5899      + |         6        <NA>
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

$AT1G01020
GRanges object with 12 ranges and 2 metadata columns:
       seqnames    ranges strand |   exon_id   exon_name
          <Rle> <IRanges>  <Rle> | <integer> <character>
   [1]     Chr1 5928-6263      - |         7        <NA>
   [2]     Chr1 6437-7069      - |         8        <NA>
   [3]     Chr1 6790-7069      - |         9        <NA>
   [4]     Chr1 7157-7232      - |        10        <NA>
   [5]     Chr1 7157-7450      - |        11        <NA>
   ...      ...       ...    ... .       ...         ...
   [8]     Chr1 7762-7835      - |        14        <NA>
   [9]     Chr1 7942-7987      - |        15        <NA>
  [10]     Chr1 8236-8325      - |        16        <NA>
  [11]     Chr1 8417-8464      - |        17        <NA>
  [12]     Chr1 8571-8737      - |        18        <NA>
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

$AT1G01030
GRanges object with 2 ranges and 2 metadata columns:
      seqnames      ranges strand |   exon_id   exon_name
         <Rle>   <IRanges>  <Rle> | <integer> <character>
  [1]     Chr1 11649-13173      - |        19        <NA>
  [2]     Chr1 13335-13714      - |        20        <NA>
  -------
  seqinfo: 7 sequences (2 circular) from an unspecified genome; no seqlengths

...
<19 more elements>

`txdb` from BioMart

Alternative sources for creating txdb databases are BioMart, Bioc annotation packages, UCSC, etc. The following shows how to create a txdb from BioMart.

library(GenomicFeatures); library(txdbmaker); library("biomaRt")
txdb <- makeTxDbFromBiomart(biomart = "plants_mart", dataset = "athaliana_eg_gene", host="https://plants.ensembl.org")

The following steps are useful to find out what is availble in BioMart.

listMarts() # Lists BioMart databases
listMarts(host="plants.ensembl.org")
mymart <- useMart("plants_mart", host="plants.ensembl.org") # Select one, here plants_mart
listDatasets(mymart) # List datasets available in the selected BioMart database
mymart <- useMart("plants_mart", dataset="athaliana_eg_gene", host="plants.ensembl.org")
listAttributes(mymart) # List available features
getBM(attributes=c("ensembl_gene_id", "description"), mart=mymart)[1:4,]

Efficient Sequence Parsing

`getSeq`

The following parses all annotation ranges provided by a GRanges object (e.g. gff) from a genome sequence stored in a local file.

gff <- gff[values(gff)$type != "chromosome"] # Remove chromosome ranges
rand <- DNAStringSet(sapply(unique(as.character(seqnames(gff))), function(x) paste(sample(c("A","T","G","C"), 200000, replace=T), collapse="")))
writeXStringSet(DNAStringSet(rand), "./data/test")
getSeq(FaFile("./data/test"), gff)

DNAStringSet object of length 442:
      width seq                                                                                                                                                                                         names
  [1]  2269 TTGCGAATATTTGATGTGCGGAATCCAGGCATAGGCGGCGCGAGTCAGAGCACCATATTGCTCGACGTGAGCATTATAGGTACTCACGGGAA...CTATGAGTGCAGATATATTATATACGTGGATGTATGGGGATTCGACCGCAGGCAGCTAGTTACCTGTCGTCTGAAACTGATGCTGGAGGACA Chr1
  [2]  2269 TTGCGAATATTTGATGTGCGGAATCCAGGCATAGGCGGCGCGAGTCAGAGCACCATATTGCTCGACGTGAGCATTATAGGTACTCACGGGAA...CTATGAGTGCAGATATATTATATACGTGGATGTATGGGGATTCGACCGCAGGCAGCTAGTTACCTGTCGTCTGAAACTGATGCTGGAGGACA Chr1
  [3]  1871 AGTTACTCCGACGGCGACTGTTAGATGCAGGCCTTCTATCGAACCGCGTTTGCGCATACTCGGCTAGGACCGCGTGACAAGGTCTATGTCAG...TGCCTGACGGTCAGCTTATCTCATCCGGGAAGACCGAGTCCACCTTGGGATCGGGTCCGTCACGCACGTACTGGAACGGCAAGGGGACCACT Chr1
  [4]   283 TTGCGAATATTTGATGTGCGGAATCCAGGCATAGGCGGCGCGAGTCAGAGCACCATATTGCTCGACGTGAGCATTATAGGTACTCACGGGAA...GCTAGGACCGCGTGACAAGGTCTATGTCAGGACTACTTCCGCTTGTAAGAATGAGGGGGTCGTTGTGTGCTGCAGCCTGACCCGGTCCGTAC Chr1
  [5]   129 TTGCGAATATTTGATGTGCGGAATCCAGGCATAGGCGGCGCGAGTCAGAGCACCATATTGCTCGACGTGAGCATTATAGGTACTCACGGGAAGTAGATCGTCCCCGTGCCCTCTAGACAAGGAGAGTGA                                                           Chr1
  ...   ... ...
[438]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGG...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ChrM
[439]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGG...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ChrM
[440]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGG...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ChrM
[441]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGG...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ChrM
[442]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGG...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ChrM

`extractTranscriptSeqs`

Sequences composed of several ranges, such as transcripts (or CDSs) with several exons, can be parsed with extractTranscriptSeqs. Note: the following expects the genome sequence in a file with path data/test and a valid txdb defining the ranges for that genome.

library(GenomicFeatures); library(Biostrings); library(Rsamtools)
txdb <- loadDb("./data/TAIR10.sqlite")
indexFa("data/test") # Creates index for genome fasta

[1] "data/test.fai"

txseq <- extractTranscriptSeqs(FaFile("data/test"), txdb, use.names=TRUE)
txseq

DNAStringSet object of length 28:
     width seq                                                                                                                                                                                          names
 [1]  1688 TTGCGAATATTTGATGTGCGGAATCCAGGCATAGGCGGCGCGAGTCAGAGCACCATATTGCTCGACGTGAGCATTATAGGTACTCACGGGAAG...CTATGAGTGCAGATATATTATATACGTGGATGTATGGGGATTCGACCGCAGGCAGCTAGTTACCTGTCGTCTGAAACTGATGCTGGAGGACA AT1G01010.1
 [2]  1623 ATTTATTGCCTCTCATCTATTTACAGTTAGACCTCTAGCATCCTAAAGATCCAGATTGTTATATTGGCCAAAGTGTCAACCATCAGGCCCACT...ATTAAAAAGTGAACCCTACTACGCTCGGGAGTATCAACCTTTAGTAGTTGCACTTTTTGGGCTTATTATGAACACGTACGCTACGATCCATT AT1G01020.1
 [3]  1085 ATTTATTGCCTCTCATCTATTTACAGTTAGACCTCTAGCATCCTAAAGATCCAGATTGTTATATTGGCCAAAGTGTCAACCATCAGGCCCACT...CGAATTCCCGTTTGCCGGCGCCCCGTGATCTGCTGAACCGCGTGTACACCGAGTTACGTTCCAACACTTGCTCTACCCTCCCCGATTTCGTT AT1G01020.2
 [4]  1905 ATCACGTGGTAAGGGTGGTCAGTGGTAGAACGGAGGCAGCATGACATGCTGCTCCCACCGCAGACTTCATTCCCTATCTGGTAGACACTTCTA...TCCGATAAGTCTTCGTCAAATTAGAATAAAAGATGCCAGCGACATGGCCTCGGTAGCCATTCAGCTTGACGGCCTCTAATCATATGTCGACG AT1G01030.1
 [5]  1239 GCTCCCTAAAATTAGCGTGGCGAGACTAATATGGATTATCTGCCCTGTCCAGATATTACCAGAATATTATCTAGCGGCACATCACTTCGCGAG...GCAACATTACACGGATCGAGTCCTGTTCGTTGACGGATTTACGGCTGTGCGGGTTCCACGGGCCCTGCAAATACAAACTTTTCTCTAGGCCA AT2G01008.1
 ...   ... ...
[24]  1062 CCCTGGTATCGACCGCTTAAGGTGCAAAGTTTGCCACCCCCGACATGCCCGTGCGTCATAGTCTTAAATCAACATTATCCACGCCCAACACAT...GCGCTCTAGCGCTGAGCACGCCTGTAACGGCCCCAGTAAGGGAGGGACGAATGTTTCCGCACATCGCGCGGCGTTACACGGCCCATTTTTAA ATCG00020.1
[25]    72 TAGGACAGTGCTACGACCCAGGGTCTCAGAATCACCATTCGGCCGCGCAAGCGCGTCGATATAGCTCCGGAG                                                                                                                     ATCG00030.1
[26]   324 AAGCTCATGAGCTTTGAGGCCTATGTACAGTGGGTCACGTCTAGACCTGTCACTAGATCTTCCCCACGAGTACTTAGGATCACTTTCGGAGGA...CTATTGGCTCCTCTAGGCGCCTTTTATGGTATCTACCGAGAGAGCCGCTCAAAATCTTGCGGAATTATCGCGCAAGGTGGAGGTACGTGGGT ATMG00030.1
[27]   462 CAATCTAGGTACATACCTCCAAAGCGTGAGTCGGGTTATTGACATTACCGGTCCTTCACGTCTAAAATGTAACAAAATTCGAGGCTACGCATG...CTGGTCAGTGGTGGAGTGTCCTCATCTTCGCCGCAGCTGGCGCCAATACTTGCCCTCGAACGCGGAGTTAGGGTTAAATCTCGCTTGCCTGT ATMG00010.1
[28]  2568 ATCGTCCGTAGTATGGACGTATTGTATATGTTGGTCGTGATGTAGCCACTGACCAGAATACTATTACGCGCCTTTAGGGCAAGCATACCGAGT...GGGCTGGAGGGAGCCAATCCGCCGAAAGGATGACAGTGAACCGCTGGATTGTGATCGAAGCGGTGTATAGTATAAGCGGATCCCACTGCGCA ATMG00020.1

Homework 6

See here.

Session Info

sessionInfo()

R version 4.5.3 (2026-03-11)
Platform: x86_64-pc-linux-gnu
Running under: Debian GNU/Linux 12 (bookworm)

Matrix products: default
BLAS:   /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.11.0
LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.11.0  LAPACK version 3.11.0

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C               LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8     LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8    LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C             LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

time zone: America/Los_Angeles
tzcode source: system (glibc)

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] txdbmaker_1.6.2             GenomicFeatures_1.62.0      AnnotationDbi_1.72.0        rtracklayer_1.70.1          systemPipeR_2.16.3          ShortRead_1.68.0            GenomicAlignments_1.46.0
 [8] SummarizedExperiment_1.40.0 Biobase_2.70.0              MatrixGenerics_1.22.0       matrixStats_1.5.0           Rsamtools_2.26.0            GenomicRanges_1.62.1        BiocParallel_1.44.0
[15] ggseqlogo_0.2.2             ggplot2_4.0.2               seqLogo_1.76.0              Biostrings_2.78.0           Seqinfo_1.0.0               XVector_0.50.0              IRanges_2.44.0
[22] S4Vectors_0.48.0            BiocGenerics_0.56.0         generics_0.1.4

loaded via a namespace (and not attached):
 [1] DBI_1.2.3               bitops_1.0-9            deldir_2.0-4            httr2_1.2.2             biomaRt_2.66.1          rlang_1.1.7             magrittr_2.0.4          otel_0.2.0              compiler_4.5.3
[10] RSQLite_2.4.6           png_0.1-8               vctrs_0.7.1             stringr_1.6.0           pwalign_1.6.0           pkgconfig_2.0.3         crayon_1.5.3            fastmap_1.2.0           dbplyr_2.5.2
[19] labeling_0.4.3          rmarkdown_2.30          UCSC.utils_1.6.1        bit_4.6.0               xfun_0.56               cachem_1.1.0            cigarillo_1.0.0         GenomeInfoDb_1.46.2     jsonlite_2.0.0
[28] progress_1.2.3          blob_1.3.0              DelayedArray_0.36.0     jpeg_0.1-11             parallel_4.5.3          prettyunits_1.2.0       R6_2.6.1                stringi_1.8.7           RColorBrewer_1.1-3
[37] Rcpp_1.1.1              knitr_1.51              Matrix_1.7-4            tidyselect_1.2.1        dichromat_2.0-0.1       abind_1.4-8             yaml_2.3.12             codetools_0.2-20        hwriter_1.3.2.1
[46] curl_7.0.0              lattice_0.22-9          tibble_3.3.1            withr_3.0.2             KEGGREST_1.50.0         S7_0.2.1                evaluate_1.0.5          BiocFileCache_3.0.0     pillar_1.11.1
[55] filelock_1.0.3          RCurl_1.98-1.17         hms_1.1.4               scales_1.4.0            glue_1.8.0              tools_4.5.3             interp_1.1-6            BiocIO_1.20.0           XML_3.99-0.22
[64] latticeExtra_0.6-31     GenomeInfoDbData_1.2.15 restfulr_0.0.16         cli_3.6.5               rappdirs_0.3.4          S4Arrays_1.10.1         viridisLite_0.4.3       dplyr_1.2.0             gtable_0.3.6
[73] digest_0.6.39           SparseArray_1.10.8      rjson_0.2.23            htmlwidgets_1.6.4       farver_2.1.2            memoise_2.0.1           htmltools_0.5.9         lifecycle_1.0.5         httr_1.4.8
[82] bit64_4.6.0-1

References

Huber, Wolfgang, Vincent J Carey, Robert Gentleman, Simon Anders, Marc Carlson, Benilton S Carvalho, Hector Corrada Bravo, et al. 2015. “Orchestrating High-Throughput Genomic Analysis with Bioconductor.” Nat. Methods 12 (2): 115–21. https://doi.org/10.1038/nmeth.3252.

Lawrence, Michael, Wolfgang Huber, Hervé Pagès, Patrick Aboyoun, Marc Carlson, Robert Gentleman, Martin T Morgan, and Vincent J Carey. 2013. “Software for Computing and Annotating Genomic Ranges.” PLoS Comput. Biol. 9 (8): e1003118. https://doi.org/10.1371/journal.pcbi.1003118.
