Introduction to HPCC Cluster and Linux

HPCC Cluster Overview

The HPCC Cluster (formerly called biocluster) is a shared research computing system available at UCR. The HPCC website is available here.

What Is a Computer Cluster?

• A computer cluster is an assembly of CPU units, so called computer nodes that work together to perform many computations in parallel. To achieve this, an internal network (e.g. Infiniband interconnect) connects the nodes to a larger unit, while one or more head nodes controls the load and traffic across the entire system.

• Usually, users log into one of the head nodes via ssh to submit their computing requests to a queuing system provided by resource management and scheduling software, such as Slurm, SGE, or TORQUE/MAUI. The queuing system distributes the processes to the computer nodes in a controlled fashion.

• Because the head node controls the entire system, users should never run computing jobs on the head node directly!

• For code testing purposes, one can log into one of the nodes via srun (see below) and run jobs interactively.

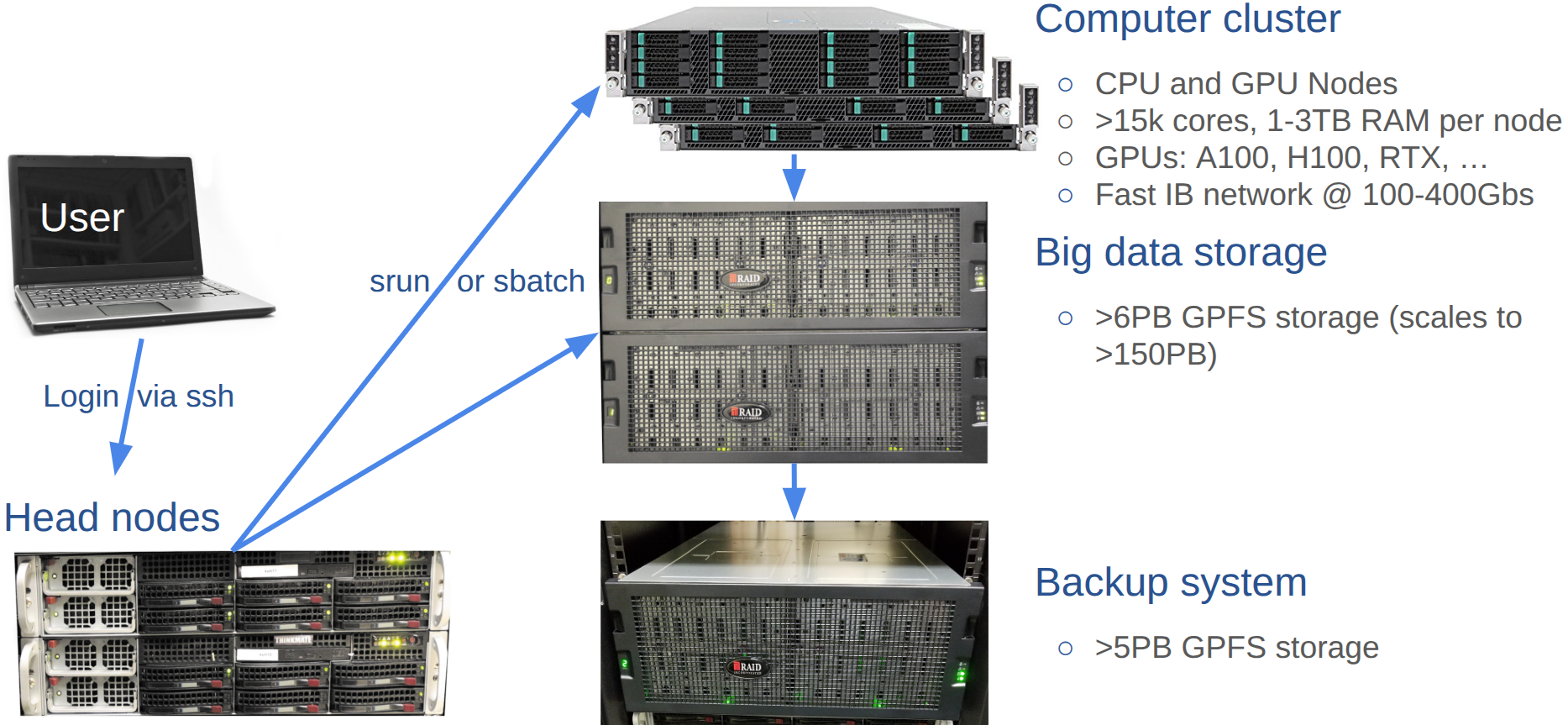

Fig 1: Cluster Overview. Users log in from their local systems to one of the head nodes via SSH. From there, computing tasks are submitted to computing nodes (sbatch or srun), and data is stored on a central big data storage system.

Hardware Infrastructure

Computer nodes

• Over 15,000 CPU cores
• 130 Intel, AMD and GPU nodes
• 32-256 CPU cores per node
• 1-3 TB of RAM per node
• 64 GPUs including NVIDIA K80, P100, RTX, A100 and H100

Interconnect

• NDR IB 100-400Gbs

Storage

• Parallel GPFS storage system with 5.0 PB usable space
• File system scales to over 50 PB
• Backup of same architecture and similar amount

User traffic

• Computing tasks need to be submitted via sbatch or srun
• HPCC Cluster headnode only for login, not for computing tasks!
• Monitor cluster activity: squeue or jobMonitor (qstatMonitor)

Manuals

• HPCC Cluster Manual
• Linux Manual

Linux Basics

Log into HPCC Cluster via SSH Terminal

Terminal-based login is the most feature-rich method for accessing remote Linux systems. Web-based alternatives via JupyterHub and RStudio Server are also possible. To access the HPCC cluster with the standard ssh protocol, users want to follow steps 1-3. Only step 1 is required after setting up SSH Key-based access.

1. Type the following ssh login command from a terminal application, where <username> needs to be replaced by the actual account name of a user. The <> characters indicate a placeholder and need to be removed. Next, press enter to execute the ssh command.

ssh -X <username>@cluster.hpcc.ucr.edu

After this a user is logged in to one of the headnodes, which are skylark or bluejay.

The -X argument enables X11 support, which is required for opening GUI applications on remote systems.

2. Type your password and hit enter. Note, when typing the password the cursor will not move and nothing is printed to the screen. If SSH Key access is enabled, both the password and Duo steps will be skipped automatically during the log in process.

3. Follow the Duo multifactor authenication instructions printed to the screen. As external users do not have access to UCR’s Duo system, they can only log in via the alternative SSH Key method. How to enable SSH Keys is described here. Note, Duo will be bypassed if SSH Key based login is enabled. This can be more conveniet than Duo when accessing the cluster frequently.

If the login is performed via a GUI application, which is an option in MobaXterm, then one can provide the same login information given under the above ssh commad in the corresponding fields of the login window as follows:

• Host name: cluster.hpcc.ucr.edu
• User name: …
• Password: …

Importantly, after the first login into a new account (or a password reset), users need to change their password with the passwd command and then follow the on-screen instructions. This requires to enter the current password once and the new password twice. New passwords need to be at least 8 characters long and meet at least 3 of the following requirments: lowercase character, uppercase character, number, and punctuation character.

What to do if password/Duo is not working? If this happens then most often the login is blocked because a password was typed too many times incorrectly, or not changed after the first login (see above). To correct this, please request a password reset by emailing support@hpcc.ucr.edu. Remember, password/Duo based access is only possible if a user’s UCR NetID matches the corresponding HPCC username. If this is not the case then UCR users can request to change their HPCC user account name to their NetID or use the SSH key based access method.

Terminal Options

Various ssh terminal applications are available for all major operating systems. Examples include:

• macOS: built-in macOS Terminal or iTerm2
• Windows: MobaXterm is a feature rich terminal option for Windows users. Here are annimated usage introductions for MobaXterm. Additional useful manuals for MobaXterm are here: SSH-Key Generation (HPCC Manual), SSH Key Generation (Main MobaXterm Manual) and Connect to Remote Systems (UNL Manual).
  • Install: When downloading MobaXterm users want to choose the Installer edition (green button here). This avoids home directory configuration issues and is the recommended option.
  • To find out where MobaXterm stores its files (incl. SSH Keys), type in the MobaXterm terminal open ~. This will open a user’s home directory in the Windows file browser.

• Linux: a wide range of Terminal applications is available for Linux. Usually, the default terminal available on a Linux distribution will be sufficient.
• ChromeOS: after enabling Linux apps on Chromebooks one can use the default terminal that is similar to those on Linux systems.
• Additional login information can be found on the corresponding HPCC manuals:
  • Login page: here
  • SSH Keys: here
  • Duo Multifactor Authenication: here
  • UCR Duo Manual: here

Remote Graphics Support

X11 support is included in the terminal applications of most OSs. This includes MobaXterm on Windows, Linux and ChromeOS terminals. On macOS systems, users need to run XQuartz in the background to enable X11 graphics display support. XQuartz can be downloaded from here (also see this video here). Note, XQuartz is optional if remote graphics support is not needed. The next section covers the XQuartz install.

Setting Up a Linux Computing Environment on a Laptop

All major operating systems can provide a Linux command-line environment with minimal setup. Thus, users may want to enable such an environment on their own laptop or desktop computer (optional for this class). For the installation users want to follow the instructions under the tab below that matches their operating system.

👆 Select your OS

Select the tab above that matches your operating system:

• Windows — use MobaXterm to get a Linux-like terminal environment
• macOS — use the native Terminal or iTerm2 with Homebrew for package management
• Linux / ChromeOS — use your existing terminal and apt for package management

With the exception of a terminal app this setup is optional for this class.

Windows (MobaXterm)

MobaXterm is the recommended terminal environment for Windows users. It provides a full Linux-like bash shell, built-in SSH client, file browser, and a package manager — all without requiring a separate Linux installation.

1. Download and install MobaXterm

Download the Installer edition from mobaxterm.mobatek.net (green button). If your IT department does not allow software installation, use the Portable edition instead — but make sure to configure a persistent home directory under Settings → General → Persistent home directory.

2. Open MobaXterm’s local terminal

Click Start local terminal in the MobaXterm home screen. This opens a bash shell running locally on your Windows machine.

3. Verify Git is available

Git is included in MobaXterm’s built-in Unix toolkit and should work immediately:

git --version

If for any reason Git is not found, install it via MobaXterm’s package manager:

apt-get install git

4. Install additional Unix tools via MobaXterm’s package manager

MobaXterm includes its own apt-get for installing additional command-line tools:

## Search for a package
apt-get search <package-name>

## Install a package
apt-get install <package-name>

## Examples
apt-get install tree
apt-get install wget

5. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Note on WSL: If you have Windows Subsystem for Linux (WSL) installed on your machine, your setup will be identical to the Linux tab below and you do not need MobaXterm. WSL provides a full Linux distribution (e.g.  Ubuntu) running natively on Windows and is an excellent alternative for more advanced users.

macOS

macOS is Unix-based, so most tools work natively with minimal setup. The main steps are to install the Xcode command-line tools, Homebrew as a package manager, and optionally a more feature-rich terminal.

1. Open Terminal

The built-in Terminal app is located at:

Applications → Utilities → Terminal

Alternatively, install iTerm2 from iterm2.com for a more feature-rich terminal with better split panes, search, and customization. Both work identically for the purposes of this course.

2. Install Xcode Command Line Tools

Xcode provides essential compilers and development tools including Git. Run the following and follow the on-screen prompts:

xcode-select --install

Verify Git was installed:

git --version

3. Install Homebrew

Homebrew is the standard package manager for macOS and allows easy installation of bioinformatics and command-line tools:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

Verify the installation:

brew --version

4. Install software with Homebrew

## Search for a package
brew search <package-name>

## Install a package
brew install <package-name>

## Examples
brew install git        # install or update Git via Homebrew
brew install wget
brew install tree

## Update all installed packages
brew upgrade

5. Install XQuartz (for graphical applications)

Some bioinformatics tools require an X11 display server to render graphical output over SSH. Install XQuartz from xquartz.org:

## Or install via Homebrew
brew install --cask xquartz

After installation, log out and back in for XQuartz to take effect.

6. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Linux / ChromeOS

Linux users already have everything they need. The main steps are to verify the required tools are installed and set up Git.

1. Open a Terminal

Most Linux desktop environments provide a terminal via:

• Ubuntu/Debian: search for Terminal in the application menu, or press Ctrl+Alt+T
• Fedora/RHEL: search for Terminal or Konsole
• ChromeOS: enable Linux (Crostini) under Settings → Advanced → Developers → Linux development environment → Turn on. This installs a Debian-based Linux container with a full terminal.

2. Verify Git is installed

git --version

If not installed:

## Ubuntu/Debian/ChromeOS
sudo apt-get update
sudo apt-get install git

## Fedora/RHEL
sudo dnf install git

3. Install additional software with apt-get

## Search for a package
apt-cache search <package-name>

## Install a package
sudo apt-get install <package-name>

## Examples
sudo apt-get install wget
sudo apt-get install tree
sudo apt-get install build-essential   # installs compilers and dev tools

## Update all installed packages
sudo apt-get update && sudo apt-get upgrade

4. Install XQuartz / X11 (for graphical applications over SSH)

To display graphical applications forwarded from HPCC over SSH:

sudo apt-get install xorg

5. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Important Linux Commands

The following provides a short overview of important shell commands. Much more detailed information can be found on HPCC’s Linux tutorials.

Finding help

man <program_name>

List content of directories

ls
ls -l or ll # includes details about files and directories
ls -al # includes hidden files starting with a dot in their name
ll -d <directory> # lists permissions of specfic directory or file

Print current working directory

pwd
pwd -P # returns physical location in case one followed symbolic link

Search in files and directories

grep

Word count

wc

Create directory

mkdir

Change directory

cd <path> # changes pwd to specified path
cd # changes pwd to root of home directory
cd - # switches to previous directory

Change directory

cd

Delete files and directories

rm

Move and rename files

mv

Copy files from internet to pwd

wget

Viewing files

less

File Exchange

GUI applications

• Windows: WinSCP or MobaXterm
• Mac OS X: CyberDuck
• Win/OS X/Linux: FileZilla

Fig 2: FileZilla settings with an SSH key. For generating SSH keys see here.

SCP: via command-line (Manual)

Advantages of this method include: batch up/downloads and ease of automation.

scp file user@remotehost:/home/user/ # From local to remote
scp user@remotehost:/home/user/file . # From remote to local

RSYNC: via command-line (Manual)

Advantages of this method include: same as SCP plus differential update options and viewing of directory content.

Print (view) content of remote directory

rsync user@remotehost:~/somedirectory/*

Download directory or file(s)

rsync -avzhe ssh user@remotehost:~/somedirectory .
  # -a: recursive archive mode (thus -r not required), also preserves permissions, time stamps, etc
  # -v: verbose
  # -z: compress data during transfer
  # -h: print messages in human-readable format
  # -e: specifies transfer protocol; using ssh here provides encryption during transfer
  # --delete: files that were deleted on source will be deleted also in backup-destination
  # -n: for testing use this dry-run option, but drop '-e ssh' in this case

Upload directory or file(s)

rsync -avzhe ssh somedirectory user@hostname:~/

Check Integrity of Files

To check the integrity of files (e.g. after downloading or copying them), one can use their hash (checksum) values created by md5sum. These hash values are specific to a file and very small in size. If a hash value for a data file is identical with the hash value of the downloaded copy, then the downloaded copy is usually identical with the source file. The following routine assumes that a file named myfile1.txt was downloaded along with its checksum (here *.md5 created for testing). Next, the checksum values are compared.

md5sum myfile1.txt # generates checksum
md5sum myfile1.txt > myfile1.md5 # saves checksum to file

        4c1ac93e1be5f77451fa909653b2404c  myfile1.txt

md5sum -c myfile1.md5 # checks checksum value

        myfile1.txt: OK

Compare Differences Among Directories

Differences in files and content of two directories can be identified with the diff command. The following also shows how to exclude certain files in this comparison, here a file called .git.

diff -r --exclude=".git" dir1/ dir2/

STD IN/OUT/ERR, Redirect & Wildcards

Wildcard * to specify many files

file.*

Redirect ls output to file

ls > file

Specify file as input to command

command < myfile

Append output of command to file

command >> myfile

Pipe STDOUT of one command to another command

command1 | command2

Turn off progress info

command > /dev/null

Pipe output of grep to wc

grep pattern file | wc

Print STDERR to file

grep pattern nonexistingfile 2 > mystderr

Linux Path Notation and Special Characters

The following code box contains frequently used Linux notations. Use the scroll option of the code box to inspect all of them.

## ~/  : Tilde - shortcut for the current user's home directory
##       Expands to /home/<username> on Linux or /Users/<username> on macOS
echo ~           # prints your home directory path
ls ~/            # list contents of your home directory
ls ~/.ssh/       # list contents of the .ssh folder in your home directory

## /   : Forward slash - root of the entire file system (the top level)
##       All absolute paths start from here
ls /             # list contents of the root directory
ls /home/        # list all user home directories on the system

## .   : Single dot - refers to the current working directory
ls .             # list contents of the current directory (same as just 'ls')
./script.sh      # execute a script located in the current directory
##       Without ./ the shell would not find the script unless it is in PATH

## ..  : Double dot - refers to the parent directory (one level up)
ls ..            # list contents of the parent directory
cd ..            # move up one directory level
cd ../..         # move up two directory levels

## ../  : Double dot with slash - parent directory, used to build relative paths
ls ../data/      # list a 'data' folder that sits one level above current directory
cp ../data/file.txt .   # copy file.txt from parent's data/ into current directory

## Absolute vs Relative paths
## Absolute: always starts with / and gives the full path from root
ls /home/username/project/data/

## Relative: starts from wherever you currently are (no leading /)
ls project/data/ # works if you are already in /home/username/

## Practical examples combining these notations
ls -al ~/        # list all files including hidden ones in home directory
cp ~/.ssh/id_rsa.pub .          # copy your public SSH key into current directory
mv ./script.sh ../bin/          # move script up one level into a bin/ directory
cat ../../config/settings.txt   # read a file two levels up in config/ directory

## Additional special notations
## -   : Single dash - refers to the previous directory you were in
cd -             # switch back to the last directory you were in

## *   : Wildcard - matches any number of any characters in filenames
ls *.sh          # list all files ending in .sh in current directory
ls data_*.txt    # list all .txt files starting with 'data_'

## ?   : Single character wildcard - matches exactly one character
ls file?.txt     # matches file1.txt, fileA.txt but not file10.txt

## {}  : Brace expansion - generate multiple strings at once
ls file{1,2,3}.txt        # expands to: ls file1.txt file2.txt file3.txt
mkdir -p project/{data,code,results}  # create three subdirectories at once

Homework Assignment (HW1)

See HW1 page here.

Permissions and ownership

List directories and files

ls -al
ls -ld <directory/file> # lists only specified dir/file

The previous command shows something like this for each file/dir: drwxrwxrwx. The meaning of this syntax is as follows:

• d: directory
• rwx: read, write and execute permissions, respectively
  • first triplet: user permissions (u)
  • second triplet: group permissions (g)
  • third triplet: world permissions (o)

Example for assigning write and execute permissions to user, group and world

chmod ugo+rx my_file

• + causes the permissions selected to be added
• - causes them to be removed
• = causes them to be the only permissions that the file has.

When performing the same operation on many files with subdirectories then one can use -R for recursive behavior.

chmod -R ugo+rx my_dir

Since directories have to be executable the capital X option can be useful which applies only to directories but not to files. The following will assign drwxr-xr-x to directories and -rw-r--r-- to files and hidden files.

chmod -R ugo-x,u+rwX,go+rX,go-w ./* ./.[!.]*

Syntax for changing user & group ownership

chown <user>:<group> <file or dir>

Symbolic Links

Symbolic links are short nicknames to files and directories that save typing of their full paths.

ln -s original_filename new_nickname

Software and module system

• Over 2,000 software tools are currently installed on the HPCC Cluster
• Custom installs in user accounts via various mechanisms, e.g. environment management systems such as conda
• Most common research databases used in bioinformatics are available
• Support of most common programming languages used in research computing
• A module system is used to facilitate the management of software tools. This includes any number of versions of each software.
• New software install requests can be sent to support@hpcc.ucr.edu.
• To use software manged under the module system, users need to learn using some basic commands. The most common commands are listed below.

Print available modules

module avail

Print available modules starting with letter ‘R’

module avail R

Load default module R

module load R

Unload specific module R

module unload R/4.2.0

Load specific R version

module unload R/4.1.2

List loaded modules

module list

Installs and package management with Conda:

See here.

Big data storage

Each user account on HPCC Cluster comes only with 20GB of disk space. Much more disk space is available in a dedicated bigdata directory. How much space depends on the subscription of each user group. The path of bigdata and bigdata-shared is as follows:

• /bigdata/labname/username
• /bigdata/labname/shared

All lab members share the same bigdata pool. The course number gen242 is used as labname for user accounts adminstered under GEN242 (here /bigdata/gen242/).

The disk usage of home and bigdata can be monitored on the HPCC Cluster Dashboard.

Queuing system: Slurm

The HPCC cluster uses Slurm as queuing and load balancing system. To control user traffic, any type of compute intensive jobs need to be submitted via sbatch or srun (see below) to the computer nodes. Much more detailed information on this topic can be found on these sites:

• UCR HPCC Manual
• Slurm Documentation
• Torque/Slurm Comparison
• Switching from Torque to Slurm
• Slurm Quick Start Tutorial

Fig 3: Overview of Slurm on HPCC cluster.

Job submission with sbatch

Print information about queues/partitions available on a cluster.

sinfo

Compute jobs are submitted with sbatch via a submission script (here script_name.sh).

sbatch script_name.sh

The following sample submission script (script_name.sh) executes an R script named my_script.R.

#!/bin/bash -l

#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=1
#SBATCH --mem-per-cpu=1G
#SBATCH --time=1-00:15:00 # 1 day and 15 minutes
#SBATCH --mail-user=useremail@address.com
#SBATCH --mail-type=ALL
#SBATCH --job-name="some_test"
#SBATCH --partition="gen242" # Choose alternative partitions from: intel, batch, highmem, gpu, short
#SBATCH --account="gen242" # Same as above

Rscript my_script.R

STDOUT and STDERROR of jobs will be written to files named slurm-<jobid>.out or to a custom file specified under #SBATCH --output in the submission script.

Interactive sessions with srun

This option logs a user in to a computer node of a specified partition (queue), while Slurm monitors and controls the resource request.

srun --pty bash -l

Interactive session with specific resource requests. Additional information about partitions is here.

srun --x11 --partition=gen242 --account=gen242 --mem=2gb --cpus-per-task 4 --ntasks 1 --time 1:00:00 --pty bash -l

The argument --mem limits the amount of RAM, --cpus the number of CPU cores, --time the time how long a session will be active. Under --parition one can choose among different queues and node architectures. Current options under --partition for most users of the HPCC cluster are: intel, batch, highmem, gpu, and short. The latter has a time limit of 2 hours. Note, --x11 will only work when logged in with X11 support. This requires the -X argument when logging in via ssh (see above). On macOS systems X11 support is provided by XQuartz which needs to be installed and running on a system prior to loging in to a remote system. If X11 support is not available or broken then one can still connect via srun by dropping the --x11 argument form the srun command.

To run your most frequently used srun command quickly, one can place the following line in a user’s ~/.bashrc file. After the next login or sourcing the .bashrc file, one can execute the command with its alias, here: srun_gen242. In this case echo is used to print the command to the screen rather than executing it right away. This way one can copy and paste it, make changes as needed and then execute it.

alias srun_gen242='echo "srun --x11 --partition=gen242 --account=gen242 --mem=20gb --cpus-per-task 8 --ntasks 1 --time 20:00:00 --pty bash -l"'

Monitoring jobs with squeue

List all jobs in queue

squeue

List jobs of a specific user

squeue -u <user>

Print more detailed information about a job

scontrol show job <JOBID>
scontrol show jobid -dd <JOBID>

Custom command to summarize and visualize cluster activity

jobMonitor

Deleting and altering jobs

Delete a single job

scancel -i <JOBID>

Delete all jobs of a user

scancel -u <username>

Delete all jobs of a certain name

scancel --name <myJobName>

Altering jobs with scontrol update. The below example changes the walltime (<NEW_TIME>) of a specific job (<JOBID>).

scontrol update jobid=<JOBID> TimeLimit=<NEW_TIME>

Resource limits

Resourse limits for users can be viewed as follows.

sacctmgr show account $GROUP format=Account,User,Partition,GrpCPUs,GrpMem,GrpNodes --ass | grep $USER

Similarly, one can view the limits of the group a user belongs to.

sacctmgr show account $GROUP format=Account,User,Partition,GrpCPUs,GrpMem,GrpNodes,GrpTRES%30 --ass | head -3

Code editors and IDEs

The following list includes examples of several widely used code editors.

• Vi/Vim/Neovim: Non-graphical (terminal-based) editor. Vi is guaranteed to be available on any system. Vim and Nvim (Neovim) are the improved versions of vi.
• Emacs: Non-graphical or window-based editor. You still need to know keystroke commands to use it. Installed on all Linux distributions and on most other Unix systems.
• VS Code: Widely used code editor developed by Microsoft. Provides wide range of functionalities.
• Pico: Simple terminal-based editor available on most versions of Unix. Uses keystroke commands, but they are listed in logical fashion at bottom of screen.
• Nano: A simple terminal-based editor which is default on modern Debian systems.

Why use a terminal-based environment on HPC?

HPCC provides several excellent web-based GUI environments via OnDemand including RStudio Server (Posit), VS Code, JupyterHub, and Matlab. These run directly on compute nodes through Slurm and are great for interactive data exploration and visualization.

nvim-R-Tmux complements rather than replaces these tools. The two approaches serve different purposes and are often used together in the same workflow:

Key differences

	nvim-R-Tmux	OnDemand (RStudio, VS Code, Jupyter)
Access	Any SSH terminal	Browser (available anywhere)
Availability	Any Linux system	Only where OnDemand (or alternative web instance) is deployed
Resource needed	Login node (no Slurm required) or compute node	Slurm compute node allocation usually required
Languages	R, Python, Bash, and more	Tool-specific (RStudio=R, Jupyter=Python/R, MATLAB)
Install overhead	Minimal (config files only)	Server-side setup required
Bandwidth	Minimal (text only)	Higher (browser-based)

A typical HPC workflow combines both: use nvim-R-Tmux as the persistent backbone for writing code, submitting and monitoring Slurm jobs, and quick interactive R/Python work on the login node; switch to OnDemand RStudio or JupyterHub when you need interactive visualization on a compute node.

The core advantage of nvim-R-Tmux for HPC work is robustness — a tmux session on the login node persists indefinitely regardless of network interruptions, VPN drops, or closing your laptop. Your R session, open files, and command history are exactly where you left them when you reconnect.

Basic usage of nvim (vim)

The following opens a file (here myfile) with nvim (or vim)

nvim myfile.txt # for neovim (or 'vim myfile.txt' for vim)

Once you are in Nvim, there are three main modes: normal, insert and command mode (visual mode included here). The most important commands for switching between the three modes are:

• i: The i key brings you from the normal mode to the insert mode. The latter is used for typing.
• Esc: The Esc key brings you from the insert mode back to the normal mode.
• :: The : key starts the command mode at the bottom of the screen.

Use the arrow keys to move your cursor in the text. Using Fn Up/Down key allows to page through the text quicker. In the following command overview, all commands starting with : need to be typed in the command mode. All other commands are typed in the normal mode after pushing the Esc key.

Important modifier keys to control vim/nvim

• :w: save changes to file. If you are in editing mode you have to hit Esc first.
• :q: quit file that has not been changed
• :wq: save and quit file
• :!q: quit file without saving any changes

Useful resources for learning vim/nvim

• Interactive Vim Tutorial
• Official Neovim Documentation
• HPCC Vim/Nvim Overview
• HPCC Linux Manual (old)

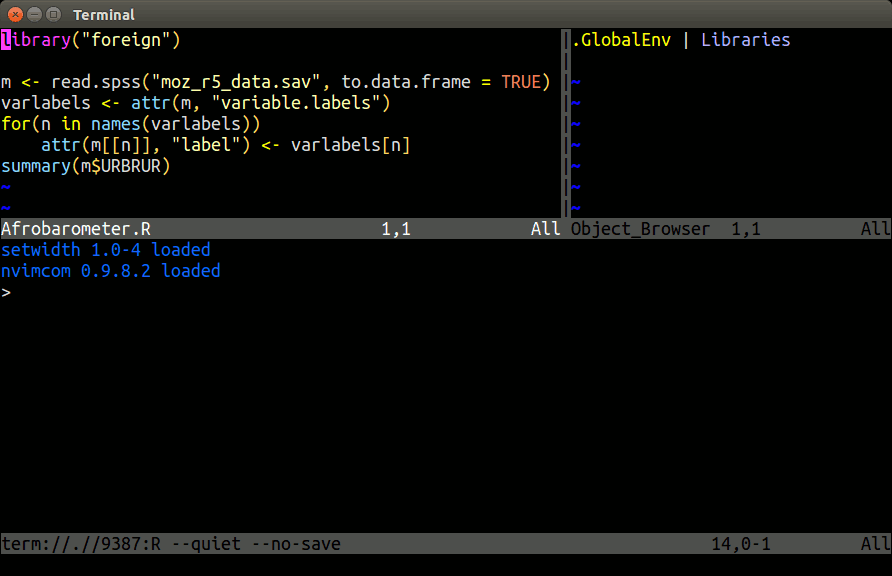

nvim-R-Tmux Essentials

Terminal-based Working Environment for R, Python and Bash: .

Basics

Tmux is a terminal multiplexer that allows splitting a single terminal window into multiple panes and detaching/reattaching to existing terminal sessions — making it possible to run an interactive R or Python console alongside your script editor without needing a graphical interface. Combined with the R.nvim plugin, it provides a powerful command-line working environment for R where users can send code directly from a script to a live R console. The hlterm plugin provides the same functionality for Python and Bash scripts. Together, these tools replicate the interactive “script + console” workflow found in desktop IDEs like RStudio, but entirely within the terminal — which is especially useful on remote systems like HPCC Cluster where graphical applications may be unavailable or impractical. All three tools need to be installed on a system. On HPCC Cluster they can be configured in each user account by following the instructions below.

Quick configuration on UCR’s HPCC

Skip these steps if nvim-R-Tmux is already configured in your account. Or follow the detailed step-wise install instructions to install nvim-R-Tmux from scratch on your own system (e.g. laptop).

1. Log in to your user account on HPCC and clone the repository:

git clone https://github.com/tgirke/nvim-R-Tmux.git
cd nvim-R-Tmux
module load neovim/0.11.4 tmux R && bash install_nvim_r_tmux.sh
# bash install_nvim_r_tmux.sh # when installing on your local computer, omit the previous line and run this command instead

2. Install plugins on first launch. This must be done on the login node:

nvim # wait until plugin install finishes
:Lazy sync # run under command mode in nvim
:qa # closes nvim

3. Log in to a compute node with srun and follow the usage instructions in the next section.

srun --partition=short --mem=2gb --cpus-per-task 4 --ntasks 1 --time 1:00:00 --pty bash -l

Basic usage of nvim-R-Tmux

The official and much more detailed user manual for R.nvim is available here. The following gives a short introduction into the basic usage of nvim-R-Tmux. A short overview of the typical usage routine on an HPC system is on this slide:

1. Start tmux session

Running Nvim from within a tmux session is strongly recommended for remote work on HPCC — it allows re-attaching to sessions after disconnects. When using tmux it is important to remember on which head node it was started (on HPCC: skylark or bluejay), since it can only be restarted from the same head node.

tmux a  # starts a new tmux session with default layout or re-attaches to existing session

The default session opens five named windows that can be changed in a user’s ~/.tmux.conf file. Switch between windows with Ctrl-a 1 through Ctrl-a 5.

2. Open nvim-connected R session

Open an *.R, *.Rmd or *.qmd file with nvim and initialize a connected R session with \rf. The resulting split window between Nvim and R behaves like a split viewport in nvim, meaning Ctrl-w w followed by i and Esc is important for navigation between panes. The same can be achieved with mouse clicks if mouse support is enabled.

nvim myscript.R # open an R script (or *.Rmd / *.qmd file)

Then inside nvim press \rf to start the connected R session. The first time an R script is opened it is best to do this on a compute node (log in with srun) since it will create the omni completion database which can take some time on a compute system with hundreds of installed packages (over 1,500 on HPCC cluster). Also, if there any messages appearing during the first session, just confirm them with Enter.

3. Send R code from nvim to the R pane

Single lines of code can be sent from nvim to the R console by pressing Enter in normal mode. Entire code chunks from Rmd and qmd can be sent with \cc. To send a custom selection of several lines at once, select them in nvim’s visual mode (press v to start selection) and then press Enter. The default keybinding for sending code in R.nvim is \l — this has been remapped in the provided init.lua to Enter for consistency with other editors.

Important keybindings for nvim

The following lists important keybindings. It uses the following syntax: Keys connected with - need to be pressed simultaneously, e.g. Ctrl-w. Any key after that (space separated) needs to be pressed after releasing the combined keys. So Ctrl-w w means: press Ctrl and w simultaneously, release both, then press w.

Modes

Key	Action
i	enter insert mode (for typing)
Esc	return to normal mode
:	enter command mode

R.nvim commands (in .R / .Rmd / .qmd files)

Key / Command	Action
\rf	open connected R session
Enter	send current line to R (normal mode)
Enter	send selection to R (visual mode)
\fc	send current function to R
\cc	send current chunk (Rmd/Quarto)
\ch	send all chunks above cursor
\rh	open R help for word under cursor
\ro	toggle object browser
\rv	view data frame under cursor with VisiData
:RMapsDesc	list all R.nvim keybindings
:RConfigShow	show current R.nvim config

Viewport and split commands

Key / Command	Action
:split or :vsplit	split viewport horizontally or vertically
gz	maximize size of viewport in normal mode
Ctrl-w w	jump cursor between splits
Ctrl-w r	swap viewports
Ctrl-w =	resize splits to equal size
Ctrl-w H or Ctrl-w K	toggle between horizontal/vertical split
Ctrl-h/j/k/l	jump to split in that direction
Esc	exit terminal insert mode
Space-m	quick toggle mouse on/off
:set mouse=a or n	alternative mouse on/off with -n or -n
Space-i	toggle indent lines on/off
Space-md	toggle markdown view on/off

Search and edit

Key / Command	Action
/ or ?	search forward or backward
:%s/search/replace/cg	find and replace (with confirmation)
:%s/\s\+$//	remove trailing whitespace
yy, dd, p	copy, cut, paste current line
:set spell / :set nospell	toggle spell checking
z=	spelling suggestions for word under cursor

Completion and help

Key / Command	Action
Ctrl-Space	omni completion for R objects/functions (insert mode)
:h r-nvim	open R.nvim user manual
:Rhelp fct_name	open help for a function with tab completion

Other useful commands

Key / Command	Action
:set tabstop=20	table viewing with aligned columns

File browser: neo-tree

neo-tree provides file browser functionality for Neovim, replacing the older NERDTree plugin. To open the file browser, press zz in normal mode, and to close it, press q.

Key	Action
zz	open file browser
q	close file browser
Enter	open selected file
a	create new file or directory
s	open file with vertical split
S	open file with horizontal split
H	toggle hidden files on/off
?	open neo-tree help
Ctrl-w w	jump cursor back to editor

Hidden files (dotfiles) are not shown by default. Press H to toggle them.

nvim IDEs for Python and Bash

For languages other than R, the hlterm plugin provides REPL integration for Neovim. It is the modern replacement for the older vimcmdline plugin and is written by the same author as R.nvim (Jakson Alves de Aquino). Supported languages include Python, Bash/Shell, Julia, JavaScript, and many others.

The usage is very similar to R.nvim. Open a Python or Bash script with nvim, start the interpreter with \s, and send lines with Enter:

nvim myscript.py       # open Python script
nvim myscript.sh       # open Bash script

Key	Action
\s	start interpreter (Python or Bash)
Enter	send current line (normal mode)
Enter	send selection (visual mode)

The Enter keybinding is buffer-local — R files use R.nvim’s Enter and Python/Bash files use hlterm’s Enter without any conflict.

Important keybindings for tmux

Prefix key: Ctrl-a (hold Ctrl and press a, release both, then press the next key)

Pane-level commands

Key	Action
Ctrl-a \|	split pane vertically
Ctrl-a -	split pane horizontally
Ctrl-a + arrow	move between panes
Alt + arrow	resize pane (no prefix needed)
Ctrl-a z	zoom/unzoom active pane (maximize)
Ctrl-a o	rotate pane arrangement
Ctrl-a x	close current pane
Ctrl-a m	toggle mouse on/off

Window-level commands

Key	Action
Ctrl-a c	create new window
Ctrl-a n / Ctrl-a p	next / previous window
Ctrl-a 1…5	jump to window by number
Ctrl-a ,	rename current window

Session-level commands

Key / Command	Action
Ctrl-a d	detach from current session
Ctrl-a s	switch between sessions
tmux	start new session with default layout
tmux a	reattach to existing session
tmux new -s NAME	start new named session
tmux a -t NAME	reattach to named session
tmux ls	list active sessions
Ctrl-a : kill-session	kill current session
Ctrl-a r	reload tmux config

Mouse support is enabled by default. Use Ctrl-a m to toggle it off when you need to select text for terminal copy/paste. On most terminals, Shift+click selects text even when mouse support is active.
