Linux & HPCC Cluster Introduction

GEN242: Data Analysis in Genome Biology

Thomas Girke

2026-04-07

Overview

Topics covered in this tutorial:

HPCC Cluster — what it is and how it’s structured
Linux basics — essential commands
File exchange — moving data to/from the cluster
Permissions and ownership
Module system — loading software
Conda — environment and package management
Big data storage — bigdata directory
Slurm — the job queuing system
Code editors — Vim/Nvim, VS Code, and more
nvim-R-Tmux — terminal IDE for R/Python/Bash

What Is a Computer Cluster?

An assembly of CPU units (nodes) working together in parallel
Nodes are connected via a high-speed internal network (e.g. Infiniband)
One or more head nodes control load and traffic
Users log into a head node via ssh and submit jobs via a queuing system (e.g. Slurm)

Warning

Never run compute jobs directly on the head node!
The head node controls the entire system — heavy jobs there affect all users.

For code testing, log into a compute node interactively with srun (see later).

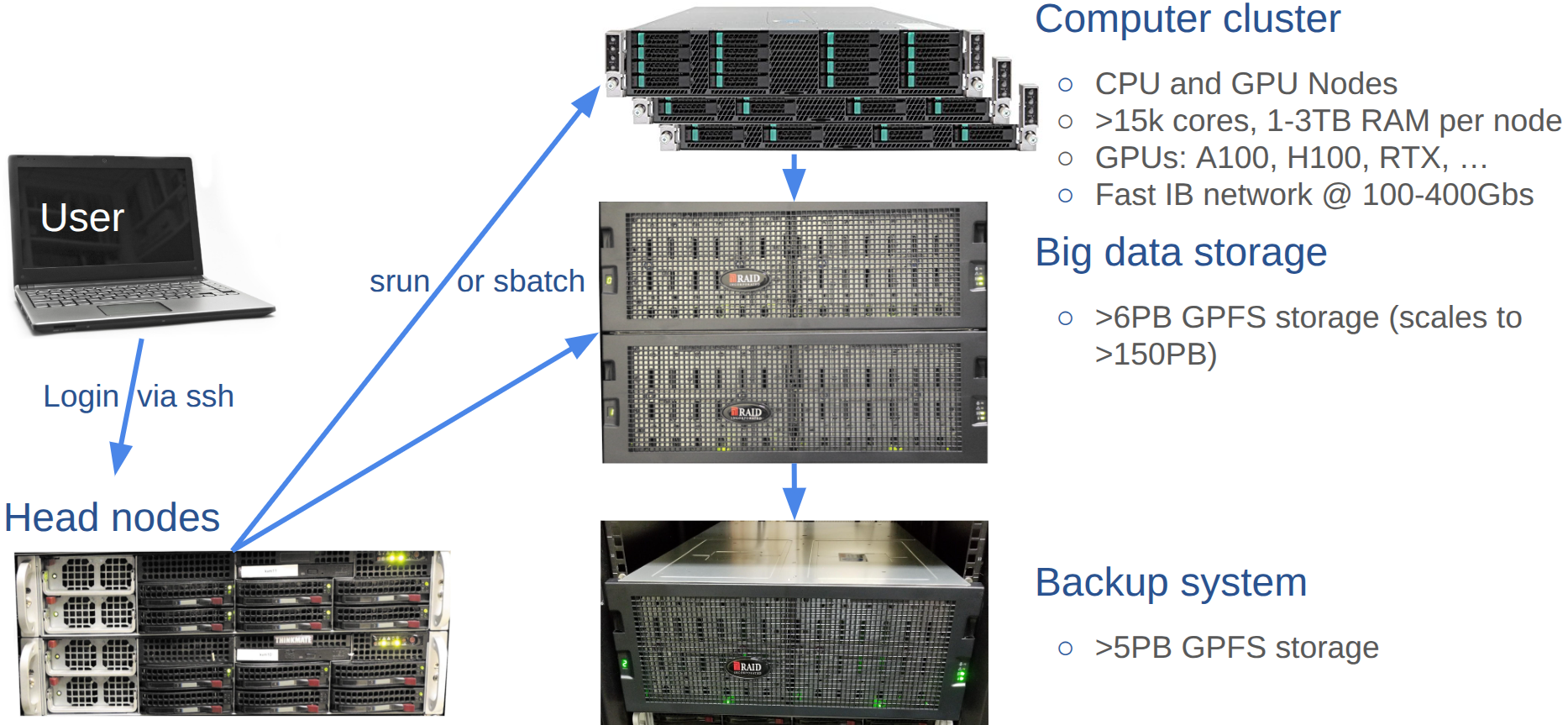

Computer Cluster Overview

Cluster overview

HPCC Cluster Hardware

Computer Nodes

Resource	Specification
CPU cores	>12,000 total
Nodes	130 Intel, AMD, and GPU nodes
Cores per node	32–128
RAM per node	256–4,096 GB
GPUs	64 (NVIDIA K80, P100, A100, H100)

Interconnect

HDR InfiniBand @ 200 Gb/s

Storage

Parallel GPFS filesystem: 5.0 PB usable (scalable to 50+ PB)
Backup system of same architecture

Logging in via SSH

ssh -X <username>@cluster.hpcc.ucr.edu

-X enables X11 graphics forwarding (required for GUI apps on the cluster).
After login you land on a head node: skylark or bluejay.

Step 2 — Password

Type your password (cursor won’t move — this is normal).
With SSH Keys configured, password + Duo are skipped automatically.

Step 3 — Duo Multifactor Authentication

Follow on-screen Duo instructions.
External users without UCR Duo must use SSH Key authentication.

Important

After first login, change your password immediately:

passwd

New passwords must be ≥ 8 characters with at least 3 of: lowercase, uppercase, number, punctuation.

Terminal Applications by OS

OS	Recommended Terminal
macOS	Built-in Terminal or iTerm2
Windows	MobaXterm (feature-rich, SSH key support)
Linux	Default system terminal
ChromeOS	Enable Linux apps → use built-in terminal

Tip

Windows users: In MobaXterm, enable a persistent home directory:
Settings → General → Persistent home directory

X11 / Remote Graphics

macOS: install and run XQuartz before connecting
Windows/Linux/ChromeOS: X11 is built into MobaXterm / most terminals

Setting Up a Linux Computing Environment on a Laptop

All major operating systems can provide a Linux command-line environment with minimal setup. Thus, users may want to enable such an environment on their own laptop or desktop computer (optional for this class). For the installation users want to follow the instructions under the tab below that matches their operating system.

👆 Select your OS
Windows (MobaXterm)
macOS
Linux / ChromeOS

Select the tab above that matches your operating system:

Windows — use MobaXterm to get a Linux-like terminal environment
macOS — use the native Terminal or iTerm2 with Homebrew for package management
Linux / ChromeOS — use your existing terminal and apt for package management

With the exception of a terminal app this setup is optional for this class.

MobaXterm is the recommended terminal environment for Windows users. It provides a full Linux-like bash shell, built-in SSH client, file browser, and a package manager — all without requiring a separate Linux installation.

1. Download and install MobaXterm

Download the Installer edition from mobaxterm.mobatek.net (green button). If your IT department does not allow software installation, use the Portable edition instead — but make sure to configure a persistent home directory under Settings → General → Persistent home directory.

2. Open MobaXterm’s local terminal

Click Start local terminal in the MobaXterm home screen. This opens a bash shell running locally on your Windows machine.

3. Verify Git is available

Git is included in MobaXterm’s built-in Unix toolkit and should work immediately:

git --version

If for any reason Git is not found, install it via MobaXterm’s package manager:

apt-get install git

4. Install additional Unix tools via MobaXterm’s package manager

MobaXterm includes its own apt-get for installing additional command-line tools:

## Search for a package
apt-get search <package-name>

## Install a package
apt-get install <package-name>

## Examples
apt-get install tree
apt-get install wget

5. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Note on WSL: If you have Windows Subsystem for Linux (WSL) installed on your machine, your setup will be identical to the Linux tab below and you do not need MobaXterm. WSL provides a full Linux distribution (e.g. Ubuntu) running natively on Windows and is an excellent alternative for more advanced users.

macOS is Unix-based, so most tools work natively with minimal setup. The main steps are to install the Xcode command-line tools, Homebrew as a package manager, and optionally a more feature-rich terminal.

1. Open Terminal

The built-in Terminal app is located at:

Applications → Utilities → Terminal

Alternatively, install iTerm2 from iterm2.com for a more feature-rich terminal with better split panes, search, and customization. Both work identically for the purposes of this course.

2. Install Xcode Command Line Tools

Xcode provides essential compilers and development tools including Git. Run the following and follow the on-screen prompts:

xcode-select --install

Verify Git was installed:

git --version

3. Install Homebrew

Homebrew is the standard package manager for macOS and allows easy installation of bioinformatics and command-line tools:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

Verify the installation:

brew --version

4. Install software with Homebrew

## Search for a package
brew search <package-name>

## Install a package
brew install <package-name>

## Examples
brew install git        # install or update Git via Homebrew
brew install wget
brew install tree

## Update all installed packages
brew upgrade

5. Install XQuartz (for graphical applications)

Some bioinformatics tools require an X11 display server to render graphical output over SSH. Install XQuartz from xquartz.org:

## Or install via Homebrew
brew install --cask xquartz

After installation, log out and back in for XQuartz to take effect.

6. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Linux users already have everything they need. The main steps are to verify the required tools are installed and set up Git.

1. Open a Terminal

Most Linux desktop environments provide a terminal via:

Ubuntu/Debian: search for Terminal in the application menu, or press Ctrl+Alt+T
Fedora/RHEL: search for Terminal or Konsole
ChromeOS: enable Linux (Crostini) under Settings → Advanced → Developers → Linux development environment → Turn on. This installs a Debian-based Linux container with a full terminal.

2. Verify Git is installed

git --version

If not installed:

## Ubuntu/Debian/ChromeOS
sudo apt-get update
sudo apt-get install git

## Fedora/RHEL
sudo dnf install git

3. Install additional software with apt-get

## Search for a package
apt-cache search <package-name>

## Install a package
sudo apt-get install <package-name>

## Examples
sudo apt-get install wget
sudo apt-get install tree
sudo apt-get install build-essential   # installs compilers and dev tools

## Update all installed packages
sudo apt-get update && sudo apt-get upgrade

4. Install XQuartz / X11 (for graphical applications over SSH)

To display graphical applications forwarded from HPCC over SSH:

sudo apt-get install xorg

5. Configure your Git identity (first time only)

git config --global user.name "Your Name"
git config --global user.email "your_github_email@example.com"

Important Linux Commands

Getting help

man <program_name>        # Open manual page for any command

Directory listing

ls                        # Basic list
ls -l                     # Detailed (long format)
ls -al                    # Include hidden files (starting with .)
ll -d <directory>         # Permissions of a specific dir/file

pwd                       # Print working directory
pwd -P                    # Physical path (resolves symbolic links)
cd <path>                 # Change to directory
cd                        # Go to home directory
cd -                      # Switch to previous directory

Search, count, create

grep "pattern" file       # Search text pattern in files
wc file                   # Word/line/character count
mkdir <dirname>           # Create directory

Important Linux Commands (cont.)

File operations

rm <file>                 # Delete file
rm -r <dir>               # Delete directory recursively
mv <src> <dst>            # Move or rename file

Downloading & viewing

wget <url>                # Download file from internet to current directory
less <file>               # View file (scroll with arrows, quit with q)

Wildcards and pipes

ls file.*                 # Wildcard: match any extension
ls > filelist.txt         # Redirect stdout to file
command < myfile          # Use file as input
command >> myfile         # Append output to file
command1 | command2       # Pipe: output of cmd1 → input of cmd2
command > /dev/null       # Suppress output
grep pattern file | wc    # Count matches of a pattern in file
grep pattern badfile 2> mystderr   # Redirect stderr to file

Linux Path Notation and Special Characters

The following code box contains frequently used Linux notations. Use the scroll option of the code box to inspect all of them.

## ~/  : Tilde - shortcut for the current user's home directory
##       Expands to /home/<username> on Linux or /Users/<username> on macOS
echo ~           # prints your home directory path
ls ~/            # list contents of your home directory
ls ~/.ssh/       # list contents of the .ssh folder in your home directory

## /   : Forward slash - root of the entire file system (the top level)
##       All absolute paths start from here
ls /             # list contents of the root directory
ls /home/        # list all user home directories on the system

## .   : Single dot - refers to the current working directory
ls .             # list contents of the current directory (same as just 'ls')
./script.sh      # execute a script located in the current directory
##       Without ./ the shell would not find the script unless it is in PATH

## ..  : Double dot - refers to the parent directory (one level up)
ls ..            # list contents of the parent directory
cd ..            # move up one directory level
cd ../..         # move up two directory levels

## ../  : Double dot with slash - parent directory, used to build relative paths
ls ../data/      # list a 'data' folder that sits one level above current directory
cp ../data/file.txt .   # copy file.txt from parent's data/ into current directory

## Absolute vs Relative paths
## Absolute: always starts with / and gives the full path from root
ls /home/username/project/data/

## Relative: starts from wherever you currently are (no leading /)
ls project/data/ # works if you are already in /home/username/

## Practical examples combining these notations
ls -al ~/        # list all files including hidden ones in home directory
cp ~/.ssh/id_rsa.pub .          # copy your public SSH key into current directory
mv ./script.sh ../bin/          # move script up one level into a bin/ directory
cat ../../config/settings.txt   # read a file two levels up in config/ directory

## Additional special notations
## -   : Single dash - refers to the previous directory you were in
cd -             # switch back to the last directory you were in

## *   : Wildcard - matches any number of any characters in filenames
ls *.sh          # list all files ending in .sh in current directory
ls data_*.txt    # list all .txt files starting with 'data_'

## ?   : Single character wildcard - matches exactly one character
ls file?.txt     # matches file1.txt, fileA.txt but not file10.txt

## {}  : Brace expansion - generate multiple strings at once
ls file{1,2,3}.txt        # expands to: ls file1.txt file2.txt file3.txt
mkdir -p project/{data,code,results}  # create three subdirectories at once

File Exchange

GUI Applications

OS	Application
Windows	WinSCP or MobaXterm
macOS	CyberDuck
All platforms	FileZilla

SCP — command-line file copy

scp file user@remotehost:/home/user/          # Local → Remote
scp user@remotehost:/home/user/file .         # Remote → Local

RSYNC — smarter sync (preferred for large transfers)

# View remote directory content
rsync user@remotehost:~/somedirectory/*

# Download a directory
rsync -avzhe ssh user@remotehost:~/somedirectory .

# Upload a directory
rsync -avzhe ssh somedirectory user@hostname:~/

RSYNC flags: -a (archive/recursive), -v (verbose), -z (compress), -h (human-readable), -e ssh (encrypt via SSH), --delete (mirror deletions)

Checking File Integrity

Use MD5 checksums to verify files after downloads or copies:

# Generate checksum
md5sum myfile1.txt

# Save checksum to a file
md5sum myfile1.txt > myfile1.md5

# Verify file matches its checksum
md5sum -c myfile1.md5

Expected output:

4c1ac93e1be5f77451fa909653b2404c  myfile1.txt
myfile1.txt: OK

Comparing Directories

Find differences between two directories (useful for checking backups or code changes):

diff -r --exclude=".git" dir1/ dir2/

-r: recursive comparison
--exclude=".git": skip the Git metadata folder

File Permissions & Ownership

View permissions

ls -al                    # List all files with permissions
ls -ld <directory>        # Permissions of a specific entry

Permission string format: `drwxrwxrwx`

Character	Meaning
`d`	directory (`-` = file)
1st `rwx`	user (owner) permissions
2nd `rwx`	group permissions
3rd `rwx`	world (other) permissions
`r` = read, `w` = write, `x` = execute

Change permissions

chmod ugo+rx my_file             # Add read+execute for user, group, world
chmod -R ugo+rx my_dir           # Recursive
chmod -R ugo-x,u+rwX,go+rX,go-w ./* ./.[!.]*  # dirs=executable, files=not

Change ownership

chown <user>:<group> <file_or_dir>

Symbolic Links

Create short nicknames (aliases) for files or directories:

ln -s original_filename new_nickname

Example:

ln -s /bigdata/gen242/shared/data ./data    # shortcut to shared data
ls -l data                                   # shows -> /bigdata/gen242/shared/data

Useful for: avoiding long paths, pointing multiple scripts at shared files.

Homework HW1: Introduction to Linux and HPC

See here

Software Module System

Over 2,000 software tools are installed on HPCC. The module system manages them (including multiple versions of the same tool).

Key commands

module avail              # List all available modules
module avail R            # List all modules starting with 'R'
module load R             # Load default version of R
module load R/4.3.0       # Load a specific version
module unload R/4.2.0     # Unload a specific version
module list               # List currently loaded modules

Note

New software install requests: email support@hpcc.ucr.edu

Custom installs

Use Conda for personal environment management (next slide)
Or compile tools from source in your home directory

Conda — Package & Environment Management

Conda lets you create isolated software environments — useful when you need specific versions of tools or tools not in the module system.

Tip

Full documentation: HPCC Conda/Package Management

Common Conda workflow

# Create a new environment
conda create -n myenv python=3.11

# Activate it
conda activate myenv

# Install packages
conda install -c bioconda samtools

# Deactivate
conda deactivate

# List environments
conda env list

Big Data Storage

Default home directory comes with only 20 GB. Use bigdata for large datasets:

Path	Purpose
`/bigdata/labname/username`	Personal bigdata space
`/bigdata/labname/shared`	Shared within the lab group

For GEN242 users, labname = gen242:

ls /bigdata/gen242/          # List the course bigdata directory

Note

Monitor your disk usage at the HPCC Cluster Dashboard

All lab members share the same bigdata quota — coordinate with your group!

Queuing with Slurm — Overview

HPCC uses Slurm for job scheduling. All compute jobs must go through Slurm:

Slurm cluster overview

Fig 2: Overview of Slurm on the HPCC Cluster.

sbatch — submit batch jobs (scripts)
srun — launch interactive sessions
squeue — monitor job queue
scancel — cancel jobs

Job Submission with `sbatch`

Check available partitions

sinfo

Submit a script

sbatch script_name.sh

Example submission script

#!/bin/bash -l

#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=1
#SBATCH --mem-per-cpu=1G
#SBATCH --time=1-00:15:00        # 1 day and 15 minutes
#SBATCH --mail-user=user@ucr.edu
#SBATCH --mail-type=ALL
#SBATCH --job-name="my_analysis"
#SBATCH --partition="gen242"     # Other options: intel, batch, highmem, gpu, short
#SBATCH --account="gen242"

Rscript my_script.R

STDOUT and STDERR are written to slurm-<jobid>.out by default.

Interactive Sessions with `srun`

Basic interactive session

srun --pty bash -l

Session with specific resources

srun --x11 \
     --partition=gen242 \
     --account=gen242 \
     --mem=2gb \
     --cpus-per-task 4 \
     --ntasks 1 \
     --time 1:00:00 \
     --pty bash -l

Tip

Shortcut alias — add this to ~/.bashrc for a quick srun command:

alias srun_gen242='echo "srun --x11 --partition=gen242 --account=gen242 \
  --mem=20gb --cpus-per-task 8 --ntasks 1 --time 20:00:00 --pty bash -l"'

Run srun_gen242 to print the command, then copy-paste and customize before executing.

Monitoring and Managing Jobs

View the job queue

squeue                             # All jobs
squeue -u <username>               # Your jobs only

Detailed job info

scontrol show job <JOBID>
scontrol show jobid -dd <JOBID>

Cluster activity summary

jobMonitor                         # Custom HPCC visualization tool

Cancel jobs

scancel -i <JOBID>                 # Cancel one job
scancel -u <username>              # Cancel all your jobs
scancel --name <myJobName>         # Cancel by job name

Alter a running job

scontrol update jobid=<JOBID> TimeLimit=<NEW_TIME>

View resource limits

sacctmgr show account $GROUP format=Account,User,Partition,GrpCPUs,GrpMem,GrpNodes --ass | grep $USER

Code Editors Overview

Editor	Type	Notes
Vi / Vim / Neovim	Terminal	Available on every Linux system; powerful but has learning curve
Emacs	Terminal/GUI	Extensible; great for Lisp/LaTeX
VS Code	GUI	Most popular today; wide extension ecosystem; available via OnDemand
Pico / Nano	Terminal	Simple; keystroke reference shown on screen

HPCC OnDemand GUI environments

Available at OnDemand: - RStudio Server (Posit) - VS Code - JupyterHub - MATLAB

These run on compute nodes via Slurm — great for interactive visualization.

Vim / Neovim Basics

Open a file

nvim myfile.txt        # Neovim (preferred)
vim myfile.txt         # Vim

Three main modes

Mode	How to enter	Used for
Normal	`Esc`	Navigation, commands
Insert	`i`	Typing / editing text
Command	`:`	Save, quit, search

Essential commands

i          → Enter insert mode (start typing)
Esc        → Return to normal mode
:w         → Save file
:q         → Quit (if no changes)
:wq        → Save and quit
:!q        → Force quit without saving

Arrow keys to move cursor
Fn + Up/Down to page through file

nvim-R-Tmux Environment

A powerful terminal IDE for R, Python, and Bash on HPC systems.

Components

Tool	Role
Neovim	Code editor with syntax highlighting, LSP
R.nvim	Plugin to send R code from editor → R console
hlterm	Same functionality for Python and Bash
Tmux	Terminal multiplexer — split windows, detach/reattach sessions

Key advantage for HPC

A tmux session persists on the login node indefinitely — survives network drops, VPN disconnects, and laptop closures. Your R session is exactly where you left it.

nvim-R-Tmux vs OnDemand

Feature	nvim-R-Tmux	OnDemand (RStudio, VSCode, Jupyter)
Access	Any SSH terminal	Browser (any device)
Availability	Any Linux system	Only where OnDemand is deployed
Resources	Login node (no Slurm needed)	Slurm compute node allocation
Languages	R, Python, Bash, more	Tool-specific
Install overhead	Minimal (config files)	Server-side setup
Bandwidth	Very low (text only)	Higher (browser-based)
Session persistence	✅ Tmux persists forever	❌ Browser session ends on disconnect

Use nvim-R-Tmux as your persistent backbone for writing code and submitting jobs;
switch to OnDemand for interactive visualization and resource-intensive exploration.

Quick Setup of nvim-R-Tmux on HPCC

Install (one-time setup)

# 1. Log in to HPCC and clone the setup repo
git clone https://github.com/tgirke/nvim-R-Tmux.git

# 2. Run the install script
cd nvim-R-Tmux
bash install_nvim_r_tmux.sh

# 3. Log out and back in to activate

Start a tmux session

tmux new -s mysession    # Create a named session
tmux attach -t mysession # Reattach later

Open Neovim in tmux

nvim myscript.R          # Opens R script

Press \rf to start R console → enter to send current line → \ce to send chunk.

Important Tmux Keybindings

All tmux commands start with the prefix key Ctrl-a (on HPCC config):

Keybinding	Action
`Ctrl-a c`	Create new window
`Ctrl-a n / p`	Next / previous window
`Ctrl-a "`	Split pane horizontally
`Ctrl-a %`	Split pane vertically
`Ctrl-a arrow`	Move between panes
`Ctrl-a d`	Detach session (keeps it running!)
`Ctrl-a [`	Enter scroll/copy mode
`q`	Exit scroll mode

Important Neovim Keybindings for R

Keybinding	Action
`\rf`	Start R console in split pane
`\l`	Send current line to R
`\ss`	Send selected block to R
`\aa`	Send entire file to R
`\rq`	Quit R
`\ro`	Open R object browser
`gcc`	Toggle comment on current line
`:w`	Save file
`:wq`	Save and quit

Summary

Topic	Key Commands
SSH login	`ssh -X user@cluster.hpcc.ucr.edu`
File listing	`ls -al`
Navigate	`cd`, `pwd`
Load software	`module load <name>`
Submit job	`sbatch script.sh`
Interactive node	`srun --pty bash -l`
Monitor jobs	`squeue -u <user>`
Cancel job	`scancel -i <JOBID>`
File transfer	`rsync -avzhe ssh src user@host:dst`
Check file integrity	`md5sum -c file.md5`

Tip

Resources:
HPCC Cluster Manual · Linux Manual · Slurm Docs

Next: T3 — Introduction to R

Linux & HPCC Cluster Introduction

Overview

What Is a Computer Cluster?

Computer Cluster Overview

HPCC Cluster Hardware

Computer Nodes

Interconnect

Storage

Logging in via SSH

Step 1 — SSH login

Step 2 — Password

Step 3 — Duo Multifactor Authentication

Terminal Applications by OS

X11 / Remote Graphics

Setting Up a Linux Computing Environment on a Laptop

Important Linux Commands

Getting help

Directory listing

Navigation

Search, count, create

Important Linux Commands (cont.)

File operations

Downloading & viewing

Wildcards and pipes

Linux Path Notation and Special Characters

File Exchange

GUI Applications

SCP — command-line file copy

RSYNC — smarter sync (preferred for large transfers)

Checking File Integrity

Comparing Directories

File Permissions & Ownership

View permissions

Permission string format: drwxrwxrwx

Change permissions

Change ownership

Symbolic Links

Homework HW1: Introduction to Linux and HPC

Software Module System

Key commands

Custom installs

Conda — Package & Environment Management

Common Conda workflow

Big Data Storage

Queuing with Slurm — Overview

Job Submission with sbatch

Check available partitions

Submit a script

Example submission script

Interactive Sessions with srun

Basic interactive session

Session with specific resources

Monitoring and Managing Jobs

View the job queue

Detailed job info

Cluster activity summary

Cancel jobs

Alter a running job

View resource limits

Code Editors Overview

HPCC OnDemand GUI environments

Vim / Neovim Basics

Open a file

Three main modes

Essential commands

Navigation in normal mode

nvim-R-Tmux Environment

Components

Key advantage for HPC

nvim-R-Tmux vs OnDemand

Quick Setup of nvim-R-Tmux on HPCC

Install (one-time setup)

Start a tmux session

Open Neovim in tmux

Important Tmux Keybindings

Important Neovim Keybindings for R

Summary

Permission string format: `drwxrwxrwx`

Job Submission with `sbatch`

Interactive Sessions with `srun`
